Product Details:

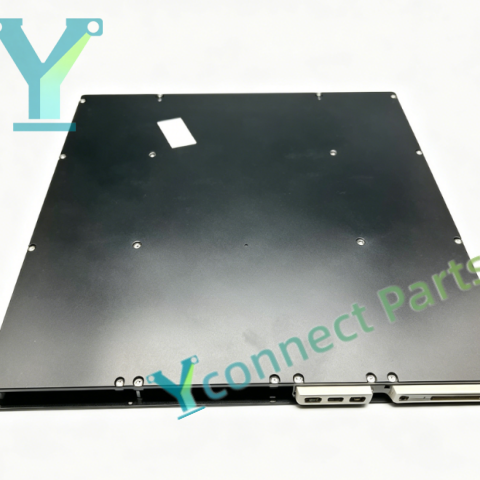

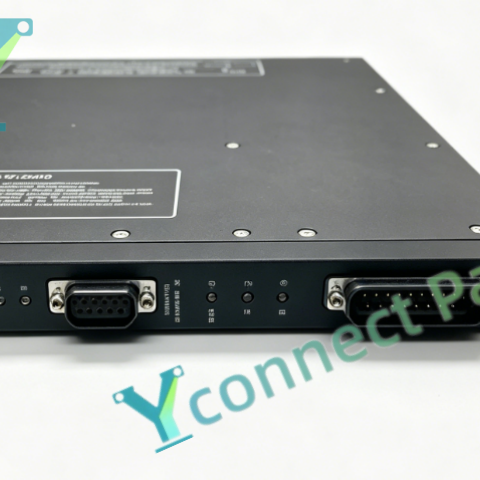

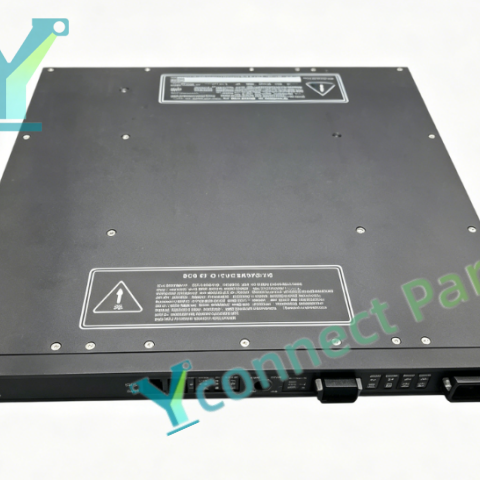

TRICONEX 3008 also known as MP3008 is a high-performance main processor module built with triple modular redundancy (TMR) architecture for Triconex Tricon safety instrumented systems (SIS). This TMR safety controller module serves as the core computing unit of the Tricon rack, responsible for executing safety logic programs, collecting all I/O signal data from field modules, performing 2-out-of-3 voting and backplane bus management. The Tricon main processor module adopts Motorola MPC860 32-bit 50MHz processor, equipped with 16MB DRAM, 32KB battery-backed SRAM and 6MB Flash PROM, supporting TriBus 25Mbps high-speed backplane communication with 32-bit CRC protection. Three modules are required to form a complete TMR redundant group. If one processor channel fails, the remaining two channels can continue to run safety logic without system shutdown. It cooperates with communication modules to transmit real-time safety variables, alarm events and SOE sequence of events data to DCS, HMI and TriStation engineering workstation. It continuously monitors processor operation, memory and hardware status, and uploads fault alarm information immediately once abnormalities are detected. The module supports hot swap operation, maintenance personnel can replace the faulty processor online without shutting down the whole safety system. Front panel LED indicators display module PASS, FAULT and synchronization status for fast on-site inspection and troubleshooting. It is compatible with Tricon system version V9.6 and above, and cooperates with all Tricon series I/O modules. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 3008 main processor module is used for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX (Schneider Electric)

Model: 3008 (MP3008)

Product Type: Tricon Main Processor Module

System Compatibility: Tricon TMR Safety Instrumented System, V9.6 and later

Processor: Motorola MPC860, 32-bit, 50MHz

Memory:16MB DRAM,32KB battery-backed SRAM,6MB Flash PROM

TriBus:25Mbps,32-bit CRC protected

Architecture: Triple Modular Redundancy(TMR), 2-out-of-3 voting

Safety Level: SIL3 certified

Core Function: Safety logic execution, signal voting, SOE recording, backplane management

Diagnostics: Processor, memory and hardware fault real-time detection

Feature: Hot swappable

Status Indicator: PASS, FAULT, SYNC LED indicators

Mounting: Tricon rack dedicated processor slot plug-in

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: IEC61508, SIL3, CE
