Product Details:

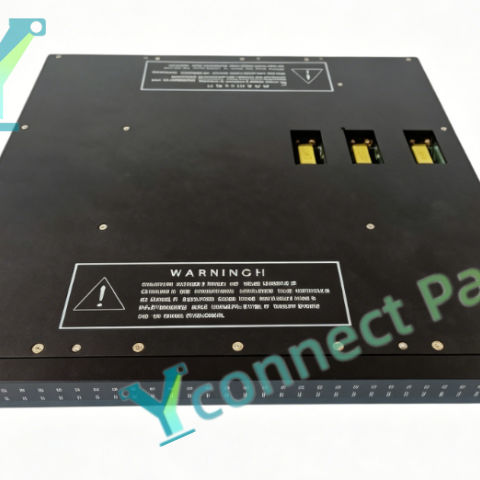

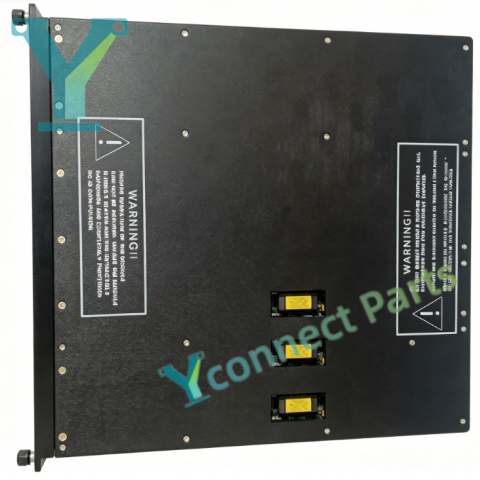

TRICONEX 3003 also known as MP3003 is a high-performance main processor module built with triple modular redundancy (TMR) architecture for Triconex Tricon safety instrumented systems (SIS). This TMR safety controller module acts as the core computing unit of the Tricon rack, responsible for executing safety logic programs, collecting and processing all I/O signals from field modules, performing 2-out-of-3 voting operations and managing the whole rack configuration. The Tricon main processor module requires three modules to form a complete TMR redundant group. If one processor channel fails, the remaining two channels can automatically bear the full load to maintain uninterrupted operation of the safety system. It supports TriBus high-speed backplane communication, and can cooperate with communication modules to transmit real-time safety variables, alarm status and SOE sequence of events data to DCS, HMI and engineering workstations. It continuously monitors input data, memory state and internal hardware health, and sends fault alarm signals to the configuration software immediately once abnormalities are detected. The module supports hot swap operation, maintenance personnel can replace the faulty processor module online without shutting down the whole safety rack. Front panel LED indicators display module PASS, FAULT and synchronization status for fast on-site inspection and troubleshooting. It is installed in the dedicated processor slot of standard Tricon rack and fully compatible with all Tricon series I/O modules. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 3003 main processor module provides reliable logic calculation and protection control for ESD emergency shutdown, fire and gas detection and burner management safety systems.

Specifications:

Manufacturer: TRICONEX (Schneider Electric)

Model: 3003 (MP3003)

Product Type: Tricon Main Processor Module

System Compatibility: Tricon TMR Safety Instrumented System

Architecture: Triple Modular Redundancy(TMR), 2-out-of-3 voting

Safety Level: SIL3 certified

Processor: Motorola MPC860 32-bit processor

Memory: 16MB DRAM, 32KB battery-backed SRAM, 6MB Flash PROM

Communication: TriBus 25Mbps backplane communication

Core Function: Safety logic execution, signal voting, system configuration, SOE recording

Diagnostics: Processor, memory, input and hardware real-time monitoring

Feature: Hot swappable, triple redundant operation supported

Status Indicator: PASS, FAULT, SYNC LED indicators

Mounting: Tricon rack dedicated processor slot plug-in

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: IEC61508, SIL3, CE
