Product Details:

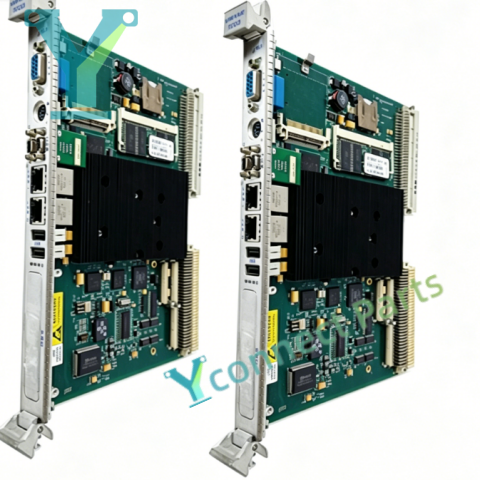

The GE VMIVME-7700 350-007700-111000H vme single board computer is a passively cooled embedded computing processor card built on VMEbus standard for industrial control and turbine monitoring systems. This vme single board computer adopts 6U Eurocard form factor and is equipped with Intel ultra-low voltage Celeron processor, supporting stable operation without fan cooling to eliminate fan failure risks in dusty plant environments. As a reliable vme bus processor board, it integrates up to 512MB PC100 SDRAM, non-volatile SRAM and IDE flash storage for system firmware, configuration parameters and runtime data saving. It comes with dual 10/100Mbps Ethernet ports, dual RS232 serial ports, USB interfaces and onboard SVGA graphics controller, supporting flexible connection with local display, field instruments and upper monitoring systems. A transparent PCI-to-VMEbus bridge is designed on the board, which allows it to act as either system master controller or peripheral CPU in multi-processor VME racks, exchanging high-speed data with other I/O and signal acquisition boards. The front panel is fitted with LED indicators to show power status, bus activity and fault alarms, making routine maintenance and fault location simple for field technicians. The PCB uses conformal coating protection to guard electronic components against dust, moisture, corrosive gas and mechanical vibration inside power plant control cabinets. As an essential ge turbine control board, it is widely deployed in gas turbine and steam turbine monitoring, generator control, oil & gas compressor and petrochemical industrial automation projects. When the original SBC suffers system crash, bus communication failure or memory aging, this replacement spare part can be installed to restore core computing capability, recover real-time data processing function and avoid costly unplanned unit shutdown. Every board undergoes full function testing, VME bus communication verification and compatibility inspection before shipment to guarantee seamless matching with VME control racks.

Specifications:

Brand: GE

Model: VMIVME-7700, 350-007700-111000H

Product Type: VME Single Board Computer

Bus Standard: VMEbus Rev.C.1

Processor: Intel Ultra Low Voltage Celeron

Memory: Up to 512MB PC100 SDRAM, non-volatile SRAM

Onboard Interfaces: Dual 10/100 Ethernet, 2×RS232 serial ports, USB, SVGA, IDE

Cooling Method: Passive cooling without fan

Mounting: Plug-in installation inside VME rack

PCB Feature: Conformal coated multi-layer PCB

Operating Temperature: -40℃ ~ +70℃

Environmental Feature: Anti-vibration, dust and moisture resistant

Weight: Approx 0.84kg
