Product Details:

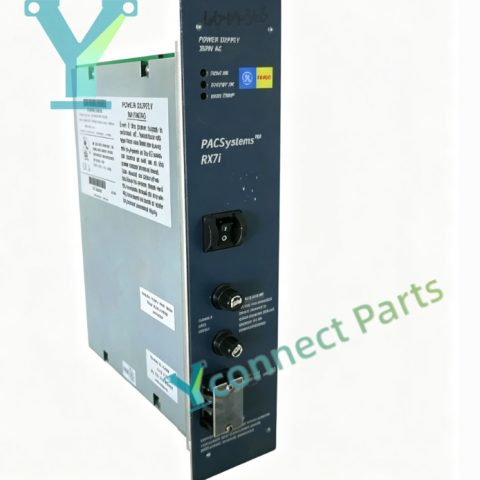

GE IC698PSA350D is a high-capacity 350W rack mount power supply module designed for GE Fanuc PACSystems RX7i VME chassis. This PACSystems power module must be installed in slot 0 of the RX7i main rack, converting wide-range AC or DC input into stable +5VDC, +12VDC and -12VDC regulated power for all CPU, I/O and communication modules on the VME backplane. The RX7i power supply module supports 85~264VAC and 100~150VDC dual input, built-in active power factor correction for AC input to reduce harmonic interference. It supports parallel redundant operation, two IC698PSA350D modules can work together to realize load sharing and hot swap, avoiding system shutdown when one power unit fails. The module integrates comprehensive protection circuits including overcurrent, overvoltage, short circuit and overtemperature protection. It also has airflow monitoring function to detect fan failure or insufficient cabinet ventilation, and trigger alarm through front LED indicators. Front panel power switch and status LEDs allow technicians to quickly check power status and fault diagnosis. Adopting slide-in plug-in structure, the module can be replaced online for maintenance in redundant system. This power supply module is widely used in power plants, petrochemical, metallurgy and heavy process industries, providing reliable high-power backplane power support for large-scale PACSystems RX7i control systems.

Specifications:

Manufacturer: GE Fanuc

Model: IC698PSA350D

Product Type: RX7i 350W Power Supply Module

Series: PACSystems RX7i

Installation Slot: Slot 0 of RX7i main rack

Input Range: 85~264VAC,100~150VDC,47~63Hz

Total Output Power: 350W

Output Channels: +5VDC up to 60A, +12VDC up to12A, -12VDC up to4A

Redundancy Support: Parallel load sharing, hot swap available

Protection Features: Overcurrent, overvoltage, short circuit, overtemperature, airflow monitoring

Power Factor Correction: Built-in for AC input

Status Indicator: LED for power OK, fault, airflow alarm

Mounting: Slide-in VME rack mount

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: UL,CE,CSA
