Title: GE IC698PSA100D RX7i Power Supply Module PACSystems Power Module Inquiry Product

Keywords: RX7i power supply module,PACSystems power module,GE IC698PSA100D

Product Details:

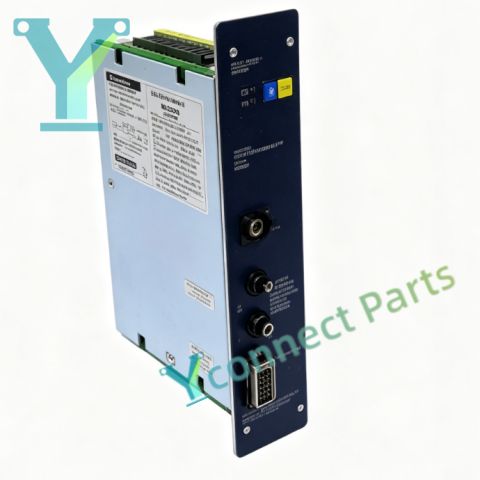

GE IC698PSA100D is a 100W rack mount power supply module for GE Fanuc PACSystems RX7i VME chassis. This PACSystems power module is installed in slot 0, the leftmost position of the RX7i main rack. It converts wide-range AC or DC input into stable +5VDC, +12VDC and -12VDC regulated power, and provides logic sequencing signals to all CPU, communication and I/O modules on the VME backplane. The RX7i power supply module accepts 85~264VAC and 100~150VDC dual input range with built-in active power factor correction for AC input, which reduces harmonic distortion and improves power utilization efficiency. It delivers total 100W continuous output power under 0℃ to 60℃ ambient temperature without forced air cooling. Integrated protection circuits include overcurrent, overvoltage and overtemperature protection to prevent damage to the power unit and backplane modules under abnormal electrical conditions. The module supports short power ride-through, maintaining stable output during temporary power dip for one AC line cycle to avoid unexpected system shutdown. Front panel is equipped with power switch and LED status indicators for operators to quickly check power running status and fault diagnosis. Adopting slide-in plug-in structure, the module can be removed and installed conveniently for maintenance. This power supply module is widely deployed in power plants, petrochemical, metallurgy and heavy process industries, providing reliable continuous power support for PACSystems RX7i control systems.

Specifications:

Manufacturer: GE Fanuc

Model: IC698PSA100D

Product Type: RX7i Power Supply Module

Series: PACSystems RX7i

Installation Slot: Slot 0 of RX7i main rack

Input Range: 85~264VAC, 100~150VDC, 47~63Hz

Total Output Power: 100W

Output Channels: +5VDC up to 20A, +12VDC up to 2A, -12VDC up to 1A

Protection Features: Overcurrent, overvoltage, overtemperature protection

Power Factor Correction: Built-in for AC input

Power Ride-through: One AC line cycle

Mounting: Slide-in VME rack mount

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: UL,CE,CSA
