Product Details:

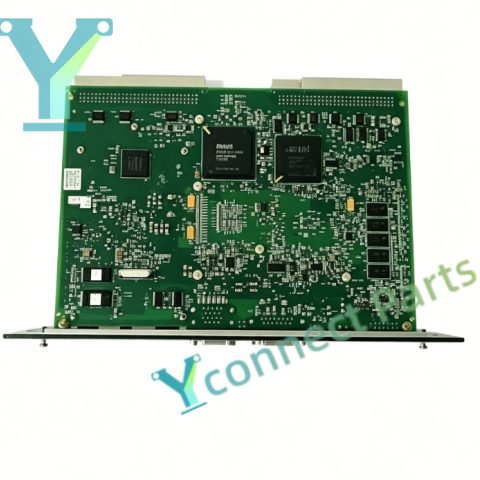

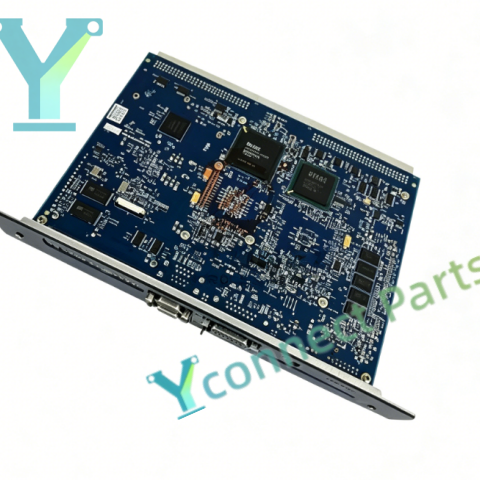

GE IC698CPE030-GJ is a high-performance single-slot CPU module for GE Fanuc PACSystems RX7i automation platform. This PACSystems controller module adopts 600MHz Intel Pentium-M processor with floating-point calculation capability, delivering fast execution of Boolean logic and complex process control algorithms. The RX7i CPU module is equipped with 64MB battery-backed RAM and 64MB non-volatile flash memory, which securely stores user control programs, configuration parameters and process data during power loss. It integrates dual 10/100Mbps auto-sensing Ethernet ports and two serial communication ports including RS232 and RS485, supporting SRTP, Modbus TCP, Ethernet Global Data (EGD), Modbus RTU and SNP protocols to realize stable data exchange with HMI, DCS and SCADA systems. Built on VME64 backplane standard, this controller can be installed in RX7i VME rack and matched with various I/O and special function modules to build large-scale distributed control systems. It supports multiple programming languages including ladder diagram, structured text and function block diagram, programmed by Proficy Machine Edition software. The module supports up to 32K discrete I/O points and 32K analog I/O words, suitable for continuous process control. It can cooperate with IC698RMX016 redundancy memory exchange module to construct hot standby redundant control system for high availability requirements. The suffix GJ represents special variant version for industrial spare part application. Widely applied in power plants, petrochemical, metallurgy and large manufacturing industries, this GE IC698CPE030-GJ CPU module provides powerful real-time control for critical industrial production processes.

Specifications:

Manufacturer: GE Fanuc

Model: IC698CPE030-GJ

Product Type: RX7i CPU Module

Series: PACSystems RX7i

Processor: 600MHz Intel Pentium-M with floating-point support

RAM: 64MB battery-backed

Flash Memory: 64MB non-volatile

Ethernet: Dual 10/100Mbps RJ45 ports

Serial Ports: 2 ports, RS232 / RS485

Supported Protocols: SRTP, Modbus TCP, EGD, Modbus RTU, SNP

Max Discrete I/O: 32K points

Max Analog I/O: 32K words

Backplane Standard: VME64

Programming Software: Proficy Machine Edition

Programming Languages: Ladder Diagram, Structured Text, Function Block Diagram

Module Size: Single VME slot

Power Requirement: 4.1A @5VDC

Operating Temperature: 0℃ ~ +60℃ with fan tray

Humidity: 5% to 95% non-condensing

Certifications: UL,CE,CSA
