Product Details:

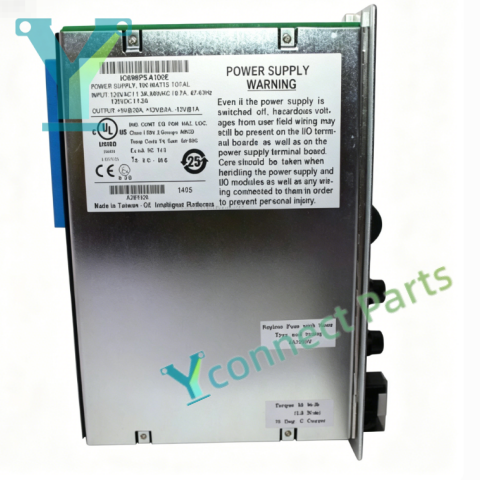

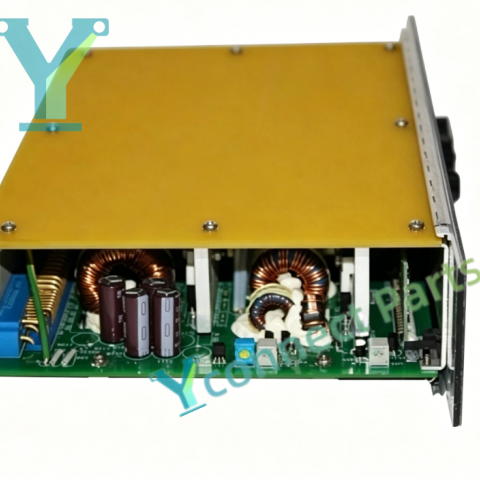

GE IC698PSA100E is a 100W rack mount power supply module designed for GE Fanuc PACSystems RX7i VME chassis. This PACSystems power module is installed in slot 0 of the RX7i main rack, converting wide range AC or DC input into stable +5VDC, +12VDC and -12VDC regulated power, and delivering logic sequencing signals to all CPU, I/O and communication modules on the VME backplane. The RX7i power supply module supports 85~264VAC and 100~150VDC dual input, equipped with built-in active power factor correction for AC input to reduce harmonic interference and improve power efficiency. It outputs 100W continuous power at 0℃ to 60℃ ambient temperature without forced air cooling. Integrated protection circuits include overcurrent, overvoltage and overtemperature protection to avoid damage to the power unit and backplane modules under abnormal electrical conditions. The module features power ride-through capability, maintaining stable output during temporary power dip for one AC line cycle to prevent unexpected PLC shutdown. Front panel power switch and LED status indicators allow technicians to quickly check power running status and perform fault diagnosis. Adopting slide-in plug-in structure, this power module supports convenient removal and replacement during equipment maintenance. Widely used in power plants, petrochemical, metallurgy and heavy process industries, it provides reliable continuous power supply for PACSystems RX7i industrial control systems.

Specifications:

Manufacturer: GE Fanuc

Model: IC698PSA100E

Product Type: RX7i Power Supply Module

Series: PACSystems RX7i

Installation Slot: Slot 0 of RX7i main rack

Input Range: 85~264VAC, 100~150VDC, 47~63Hz

Total Output Power: 100W

Output Channels: +5VDC up to 20A, +12VDC up to 2A, -12VDC up to 1A

Protection Features: Overcurrent, overvoltage, overtemperature protection

Power Factor Correction: Built-in for AC input

Power Ride-through: One AC line cycle

Mounting: Slide-in VME rack mount

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: UL,CE,CSA
