Product Details:

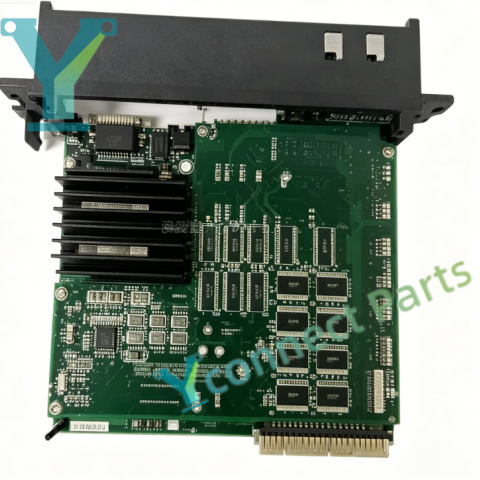

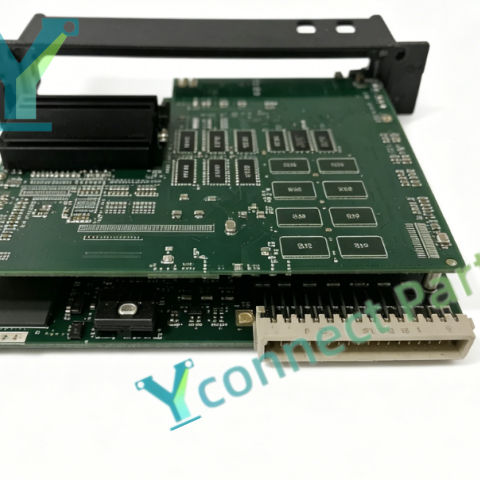

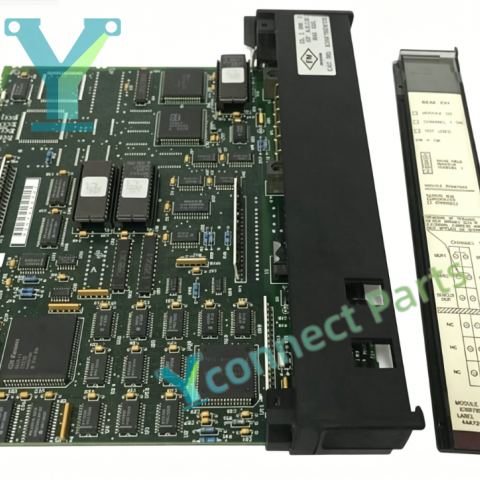

GE IC697CPX928-FE is a high-performance single-slot CPU module with integrated Ethernet function for GE Fanuc Series 90-70 PLC platform. This PLC controller module adopts 96MHz 80486DX4 32-bit microprocessor with built-in floating-point calculation capability, and it only takes 0.4 microseconds to execute each Boolean instruction, providing fast logic scanning and complex process algorithm operation. The Series 90-70 CPU module is equipped with 6MB battery-backed RAM and 256KB non-volatile flash memory. The onboard lithium battery can retain user programs and process data for up to 6 months after power failure. It comes with three serial communication ports, including one RS232 port and two RS485 ports, supporting SNP slave protocol. The suffix FE represents integrated Ethernet interface, which can realize direct network connection with HMI, SCADA and other host systems. The module supports up to 12K mixed discrete I/O points and 8K analog I/O points, compatible with all IC697 series I/O modules, coprocessor modules and communication modules. Seven LED status indicators on the front panel show run, fault and communication status, helping engineers diagnose system faults quickly. It adopts plug-in rack mounting design, occupying one slot of Series 90-70 chassis. This PLC controller module is widely used in power plants, petrochemical, metallurgy and large manufacturing industries, serving as the core control unit for medium and large-scale industrial automation systems.

Specifications:

Manufacturer: GE Fanuc

Model: IC697CPX928-FE

Product Type: Series 90-70 CPU Module

Series: Series 90-70 PLC

Processor: 96MHz 80486DX4 32-bit microprocessor, floating-point support

RAM: 6MB battery-backed RAM

Flash Memory: 256KB non-volatile flash

Serial Ports: 1 x RS232, 2 x RS485

Ethernet: Integrated Ethernet interface (FE suffix)

Supported Protocol: SNP Slave

Max I/O: 12K mixed discrete I/O, 8K analog I/O

Backplane Current: 3.1A @5VDC

Battery Type: IC697ACC701 lithium battery, data retention for 6 months

Status Indicator: 7 LED indicators

Mounting: Single slot rack mount

Operating Temperature: 0℃ ~ +60℃, forced air cooling required for full load above 50℃

Humidity: 5% to 95% non-condensing

Certifications: UL,CE,CSA
