Product Details:

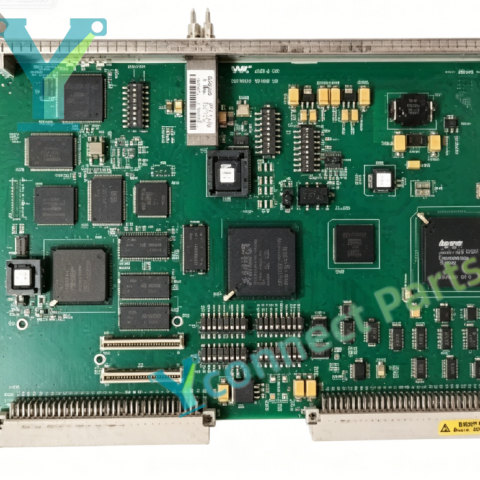

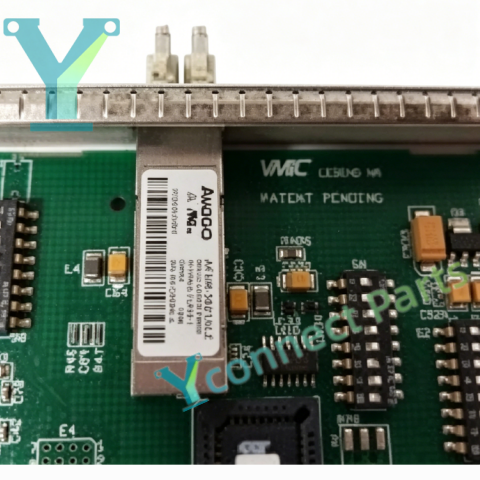

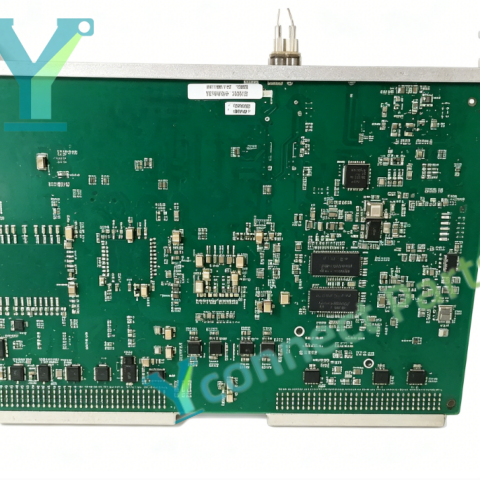

The GE VME-5565 VMIVME-5565-110000/332-015565-110000 P reflective memory board is a high-speed fiber optic synchronization card designed for VMEbus industrial control systems. This reflective memory board implements deterministic real-time data sharing across multiple control nodes via fiber links. Once data is written to the local memory of one board, the information will be automatically replicated to all other reflective memory boards on the network with ultra-low latency, which removes heavy protocol overhead and reduces CPU processing burden. As a stable vme fiber communication board, it is equipped with fiber optic transceivers to realize electrical isolation between control systems, effectively blocking electromagnetic interference from high-power equipment in power plants. The onboard memory stores shared real-time process data, and built-in diagnostic LED indicators show fiber link status, data transmission activity and fault alarms, helping maintenance technicians quickly find communication faults during routine inspection. The PCB adopts conformal coated multi-layer design to protect electronic components from dust, moisture, corrosive gas and mechanical vibration inside the control cabinet. As a vital ge turbine control board, it is widely used in gas turbine and steam turbine triple redundant control systems, generator excitation control, oil & gas compressor stations and petrochemical process automation projects that require synchronized multi-node data. When the original board suffers fiber link failure, data synchronization error or component aging, this replacement spare part can be installed to restore high-speed shared memory communication, eliminate data inconsistency and prevent emergency shutdown of turbine generator units. Every board undergoes full fiber channel testing and VME bus compatibility verification before shipment to ensure seamless operation with VME racks.

Specifications:

Brand: GE

Model: VME-5565, VMIVME-5565-110000/332-015565-110000 P

Product Type: Reflective Memory Board

Bus Standard: VMEbus

Communication Interface: Fiber optic interface

Core Function: Deterministic multi-node memory data synchronization

Status Indicator: Onboard LED diagnostic indicators

Mounting: Plug-in installation inside VME control rack

PCB Feature: Conformal coated multi-layer PCB

Operating Temperature: -40℃ ~ +70℃

Environmental Feature: Anti-vibration, dust and moisture resistant

Weight: Approx 0.73kg
