Product Details:

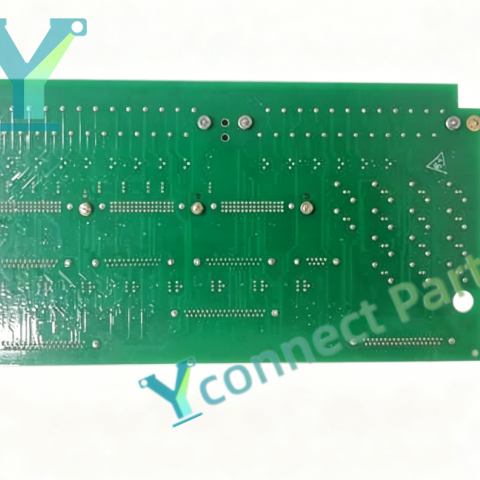

The GE IS200TVBAH2ACC, material part number MRP646218, is a Vibration Terminal Board designed for GE Speedtronic Mark VI turbine control systems. This industrial control spare part acts as signal termination and conditioning interface for turbine vibration and position sensors. As a reliable Turbine Control Module, it receives raw signals from eddy current proximity probes, velocity sensors and accelerometers. It handles shaft vibration, shaft displacement and key phasor pulse signals, and transfers conditioned measurement signals to PVIB vibration processor board to monitor rotating equipment operating state. It can detect excessive vibration, shaft offset and other mechanical faults for gas turbines, steam turbines and generators.

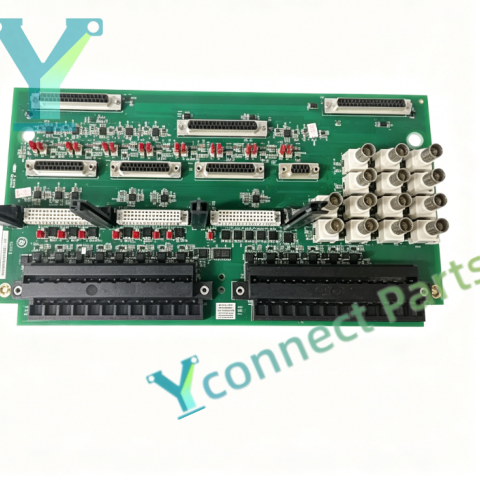

The GE IS200TVBAH2ACC Vibration Terminal Board adopts conformal coated PCB to resist dust, moisture and vibration in harsh power plant environments. It integrates EMI filter circuits and transient surge suppression components to reduce site electromagnetic interference. Equipped with BNC connectors and barrier terminal blocks for convenient sensor wiring and field maintenance. The board supports simplex, dual and TMR redundant system architectures and VME rack installation inside Mark VI control cabinet. Built-in channel diagnostic functions can detect sensor open circuit, short circuit and signal loss faults. It is widely used in power generation and oil & gas industries for turbine vibration monitoring system maintenance, spare part replacement and system retrofit.

Specifications:

Brand: GE

Model: IS200TVBAH2ACC

Material Part No.: MRP646218

Product Type: Vibration Terminal Board

Compatible System: GE Mark VI Speedtronic Turbine Control System

Function: Vibration, displacement and key phasor signal termination and conditioning

Input Sensor: Proximity probe, velocity transducer, accelerometer

Protection: EMI noise suppression and surge suppression circuit

Mounting: VME rack mount

Protection Class: IP20

Operating Temperature: -20℃ ~ +70℃

Weight:0.61kg
