Product Details:

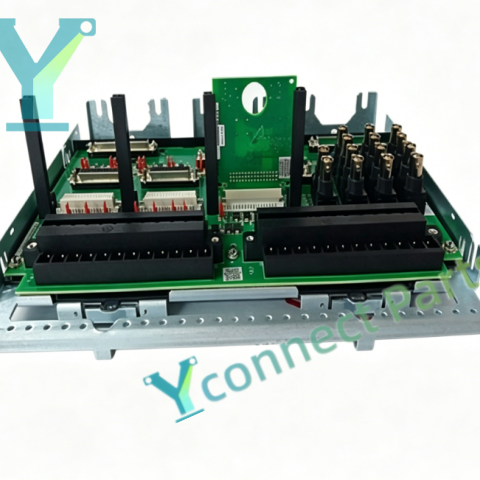

The GE IS230TVBAH2A, part number MRP716820, is a high-performance Vibration Input Terminal Board designed for GE Speedtronic Mark VIe turbine control systems. This industrial control spare part works as the front-end signal conditioning interface for vibration monitoring sensors on gas turbines and steam turbines. As a reliable Turbine Control Module, it supports multiple sensor types including proximity probes, accelerometers and seismic velocity transducers. It receives raw vibration and shaft displacement signals, performs signal amplification, filtering and conditioning, then transmits processed data to the Mark VIe I/O pack for real-time monitoring of shaft vibration, bearing vibration and shaft position.

The GE IS230TVBAH2A Vibration Input Terminal Board adopts conformal coated PCB to defend against moisture, dust and vibration in harsh power plant environments. It is equipped with screw terminal blocks for convenient sensor wiring and field maintenance. Built-in surge suppression and signal conditioning circuits reduce electromagnetic interference and guarantee stable signal acquisition. The board supports simplex, dual and TMR redundant system architectures and can be installed inside Mark VIe control cabinets. Built-in channel diagnostic functions help maintenance staff quickly detect sensor open-circuit and signal abnormal faults. It is widely used in power generation and oil & gas industries for gas turbine, steam turbine and compressor control system maintenance and spare part replacement.

Specifications:

Brand: GE

Model: IS230TVBAH2A

Material Part No.: MRP716820

Product Type: Vibration Input Terminal Board

Compatible System: GE Mark VIe Speedtronic Turbine Control System

Supported Sensors: Proximity probe, accelerometer, seismic transducer

Function: Vibration signal conditioning and acquisition

Mounting: I/O chassis rack mount

Protection Class: IP20

Operating Temperature: -25℃ ~ +70℃

Weight: 0.6kg
