Product Details:

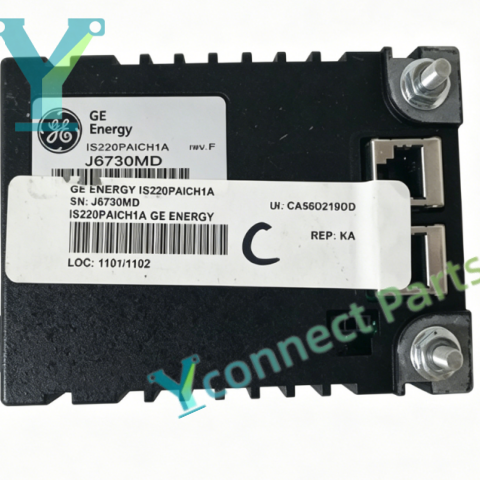

The GE IS220PAICH1A is a high-performance Analog I/O Pack Module designed for GE Speedtronic Mark VIe distributed turbine control systems. This industrial control spare part integrates analog input and analog output functions to handle continuous process signals from field transmitters and actuators. As a reliable Turbine Control Module, it is equipped with 10 analog input channels and 2 analog output channels, supporting ±10V voltage signals and 0~20mA / 4~20mA current signals. It can collect real-time data such as pressure, flow and temperature from field sensors, and output analog control signals to regulate valves and other field equipment.

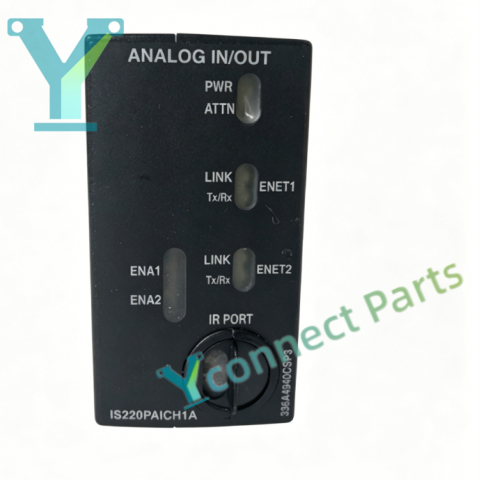

The GE IS220PAICH1A Analog I/O Pack Module comes with dual 100Mbps Ethernet ports for redundant IONet communication, which ensures stable data exchange between the I/O pack and main controller. The module supports simplex, dual and TMR redundant system architectures and allows hot replacement without shutting down the whole control system. Built-in channel diagnostic functions and front LED indicators can quickly detect wiring faults and abnormal channel status. It adopts ruggedized circuit board design to resist vibration, dust and electromagnetic interference in power plant environments. It is widely used in gas turbine, steam turbine and compressor control systems for power generation and oil & gas industries, suitable for system maintenance, spare part replacement and control system upgrading.

Specifications:

Brand: GE

Model: IS220PAICH1A

Product Type: Analog I/O Pack Module

Compatible System: GE Mark VIe Speedtronic Turbine Control System

Channel Configuration:10 Analog Input,2 Analog Output

Supported Signal: ±10V, 0~20mA,4~20mA

Communication: Dual 100Mbps IONet Ethernet

Redundancy: Simplex, Dual, TMR

Mounting: I/O rack mount

Protection Class: IP20

Operating Temperature: -20℃ ~ +70℃

Weight: 1.0kg
