Product Details:

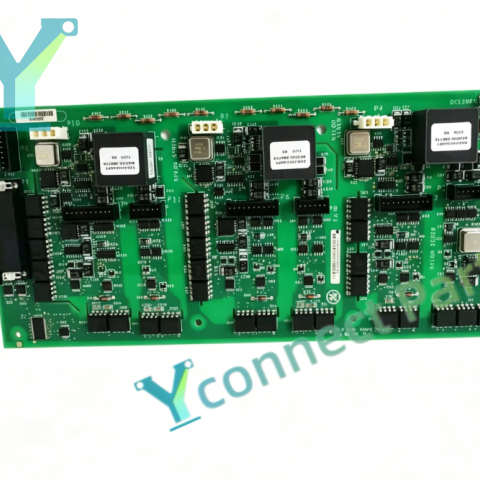

The GE IS210AEBIH3BED is an AE Bridge Interface Board (AEBI) designed for GE Speedtronic Mark VIe turbine and wind power control systems, compatible with EX2100e generator excitation control system. This industrial control spare part acts as the signal bridge between the main controller and field measurement equipment. As a reliable Turbine Control Module, it integrates signal isolation and multi-stage analog conditioning circuits, collecting voltage and current feedback signals from instrument transformers and field transmitters. It converts raw analog signals into stable measurement data for generator voltage regulation, reactive power control and equipment operating state monitoring, and filters high-frequency electromagnetic interference in power plant and wind farm sites.

The GE IS210AEBIH3BED AE Bridge Interface Board adopts conformal coated PCB to resist moisture, dust and vibration in harsh energy generation environments. It is equipped with dedicated cable connectors and terminal blocks for convenient field wiring and maintenance. The board supports simplex, dual and TMR redundant system architectures and rack mounting inside Mark VIe control cabinets. Built-in comprehensive circuit self-diagnostic functions can quickly detect wiring faults, open circuit, short circuit and signal out-of-range abnormalities. It is widely used in power generation and wind energy industries for turbine, generator excitation control system maintenance, spare part replacement and system retrofit.

Specifications:

Brand: GE

Model: IS210AEBIH3BED

Product Type: AE Bridge Interface Board

Compatible System: GE Mark VIe Speedtronic Control System, EX2100e Excitation Control System

Function: Analog signal isolation, conditioning and excitation feedback acquisition

Power Supply:24VDC nominal

Mounting:I/O rack mount

Protection Class:IP20

Operating Temperature:-20℃ ~ +65℃

Weight:0.32kg
