Product Details:

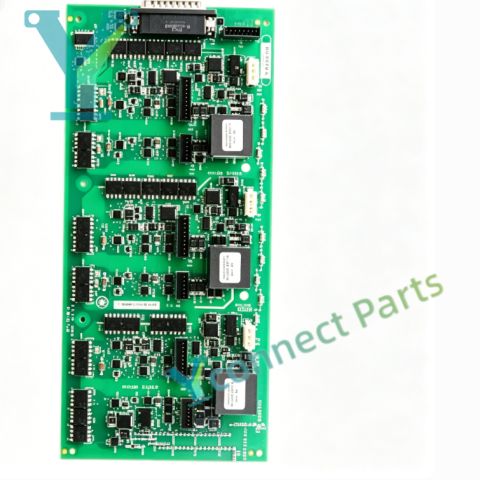

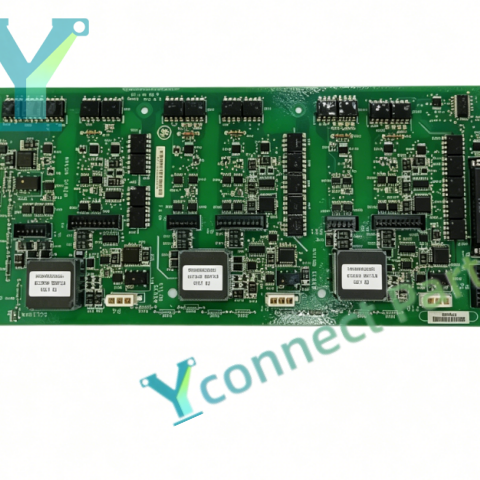

The GE IS210AEBIH1BED is an AE Bridge Interface Board designed for GE Speedtronic Mark VIe turbine control systems, and it can cooperate with EX2100e generator excitation control system. This industrial control spare part acts as the signal bridge for excitation and analog measurement signals, transferring conditioned sensor signals to the main controller for generator voltage regulation and turbine operating state monitoring. As a reliable Turbine Control Module, it integrates signal isolation and signal conditioning circuits, processing weak measurement signals from instrument transformers and field transmitters, and filtering high-frequency noise interference at power plant sites.

The GE IS210AEBIH1BED AE Bridge Interface Board adopts conformal coated PCB to resist moisture, dust and vibration in harsh power generation environments. It is equipped with dedicated connectors and terminal blocks for convenient field wiring and maintenance. The board supports simplex, dual and TMR redundant system architectures and VME rack mounting inside Mark VIe control cabinets. Built-in circuit self-diagnostic functions help operators quickly detect wiring faults and abnormal signal status. It is widely used in power generation and oil & gas industries for gas turbine, steam turbine and generator excitation control system maintenance, spare part replacement and system retrofit.

Specifications:

Brand: GE

Model: IS210AEBIH1BED

Product Type: AE Bridge Interface Board

Compatible System: GE Mark VIe Speedtronic Turbine Control System, EX2100e Excitation Control System

Function: Analog signal conditioning and bridge transmission

Isolation: Built-in signal isolation circuit

Mounting: VME rack mount

Protection Class: IP20

Operating Temperature: -20℃ ~ +70℃

Weight: 0.32kg
