Product Details:

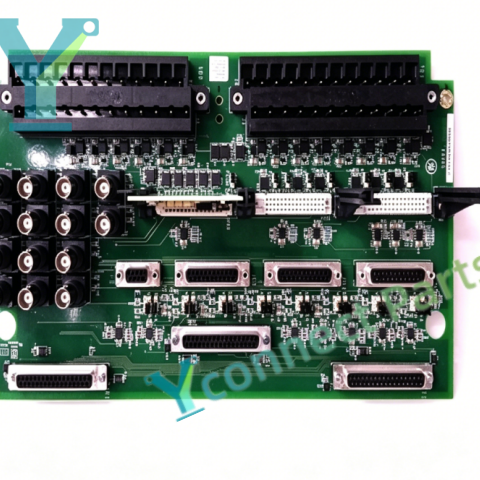

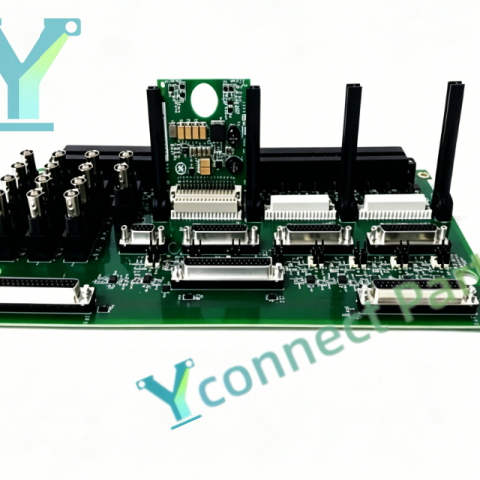

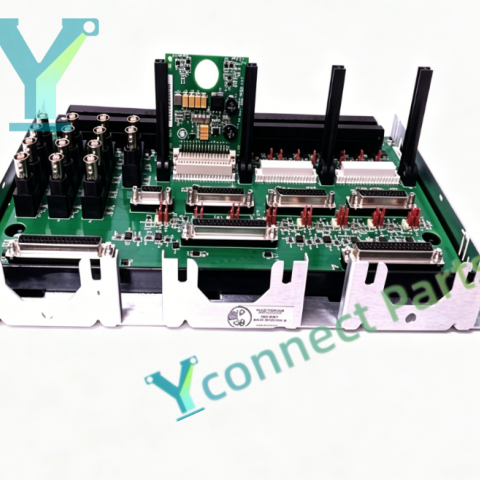

The GE IS200TVBAH2ACC, part number MRP702115, is a high-performance Vibration Input Terminal Board designed for GE Speedtronic Mark VI turbine control systems. This industrial control spare part serves as the front signal conditioning interface for turbine vibration monitoring sensors. As a reliable Turbine Control Module, it receives raw signals from proximity probes, accelerometers and seismic transducers, then carries out signal amplification, filtering and conditioning, and transmits processed vibration data to the main controller for real-time monitoring of shaft vibration, bearing vibration and shaft displacement of gas turbines and steam turbines.

The GE IS200TVBAH2ACC Vibration Input Terminal Board adopts conformal coated PCB to resist dust, moisture and vibration in harsh power plant environments. Built-in surge suppression and signal conditioning circuits reduce electromagnetic interference and guarantee signal integrity. It is equipped with dedicated sensor connectors and terminal blocks for convenient wiring and field maintenance. The board supports simplex, dual and TMR redundant system architectures and can be installed in the VME rack of Mark VI control cabinet. Built-in channel diagnostic functions help maintenance staff quickly detect sensor open circuit and signal abnormal faults. It is widely deployed in power generation and oil & gas industries for gas turbine, steam turbine and compressor control system maintenance and spare part replacement.

Specifications:

Brand: GE

Model: IS200TVBAH2ACC

Material Part No.: MRP702115

Product Type: Vibration Input Terminal Board

Compatible System: GE Mark VI Speedtronic Turbine Control System

Supported Sensors: Proximity probe, accelerometer, seismic transducer

Function: Vibration signal conditioning and acquisition

Mounting: VME rack mount

Protection Class: IP20

Operating Temperature: -20℃ ~ +70℃

Weight: 0.6kg
