Title: GE IS200TRLYH1BGF Termination Relay Terminal Board Mark VI Inquiry Product

Three Keywords: Termination Relay Terminal Board, Turbine Control Module, Industrial Control Spare Part

Product Details:

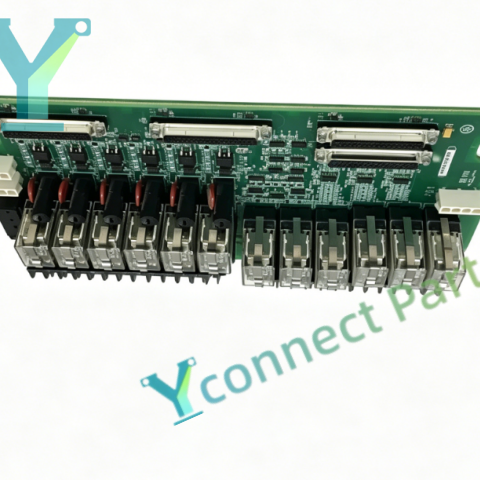

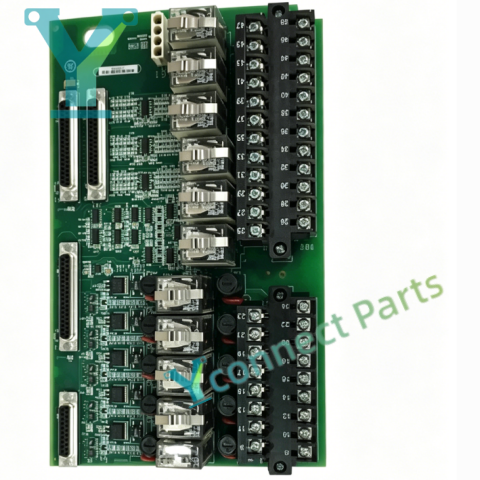

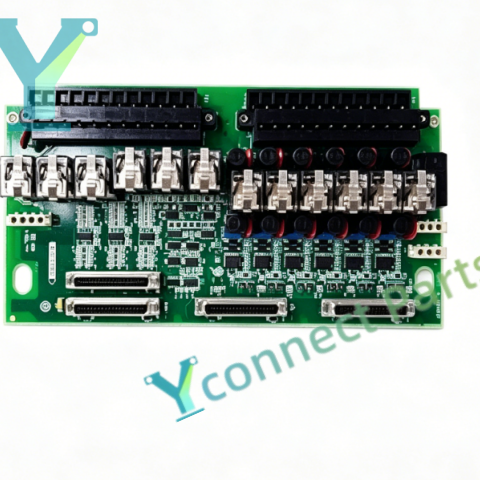

The GE IS200TRLYH1BGF is a Termination Relay Terminal Board designed for GE Speedtronic Mark VI turbine control systems. This industrial control spare part executes switch control commands from the main controller to field equipment. As a reliable Turbine Control Module, it is equipped with socketed sealed mechanical relays, supporting voted coil drive feedback and MOV surge suppression. It outputs dry contact signals to control solenoid valves, trip relays, pumps and auxiliary devices on gas turbines and steam turbines. It connects with VCCC, VCRC or VGEN control boards via molded plug cables, supporting simplex, dual and TMR redundant system structures.

The GE IS200TRLYH1BGF Termination Relay Terminal Board adopts conformal coated PCB to defend against dust, moisture and vibration in harsh power plant environments. It has 48 barrier type terminal blocks for convenient field wiring and maintenance. Built-in relay status feedback circuit can feed back contact action state to the control board for channel fault diagnosis. The board is installed in VME rack of Mark VI control cabinet. It is widely used in power generation and oil & gas industries for gas turbine, steam turbine and compressor control system maintenance and spare part replacement.

Specifications:

Brand: GE

Model: IS200TRLYH1BGF

Product Type: Termination Relay Terminal Board

Compatible System: GE Mark VI Speedtronic Turbine Control System

Relay: Socketed sealed mechanical relay

Protection: MOV surge suppression

Terminal: 48 barrier terminals

Architecture: Simplex, Dual, TMR

Mounting: VME rack mount

Protection Class: IP20

Operating Temperature: -20℃ ~ +70℃
