Product Details:

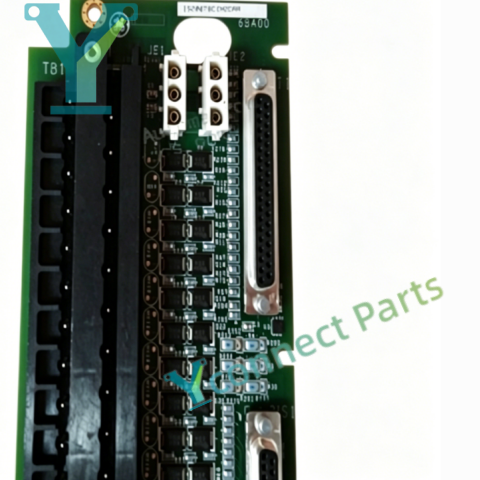

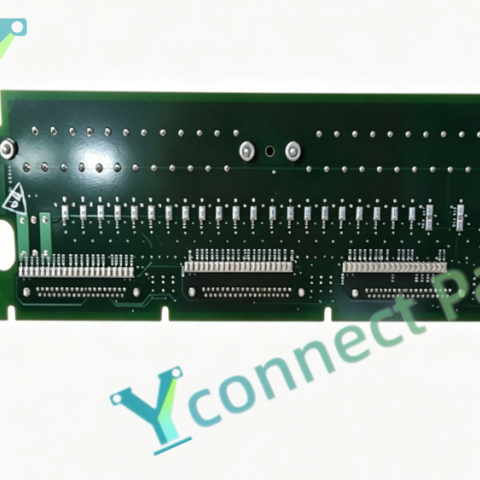

The GE IS200TBCIH2CAA, part number MRP604466, is a Terminal Board Controller designed for GE Speedtronic Mark VI turbine control systems. This industrial control spare part serves as the communication and signal termination bridge between the main controller and field I/O terminal boards. As a reliable Turbine Control Module, it adopts UDH unit data highway communication to transmit analog, discrete and protection signals between the control processor and distributed terminal boards. It routes field contact input signals from limit switches, pressure switches and relay status contacts, and provides signal isolation and noise suppression to reduce electromagnetic interference in power plant cabinet environments.

The GE IS200TBCIH2CAA Terminal Board Controller uses conformal coated PCB to resist dust, moisture and vibration under harsh power generation operating conditions. It is equipped with dedicated ribbon cable connectors and terminal blocks for convenient field wiring and maintenance. The board supports simplex, dual and TMR redundant system architectures and VME rack installation inside Mark VI control cabinet. Built-in self-diagnostic circuits can detect communication failure, open circuit and abnormal signal status. It is widely used in power generation and oil & gas industries for gas turbine, steam turbine control system maintenance, spare part replacement and system retrofit.

Specifications:

Brand: GE

Model: IS200TBCIH2CAA

Material Part No.: MRP604466

Product Type: Terminal Board Controller

Compatible System: GE Mark VI Speedtronic Turbine Control System

Communication: UDH Unit Data Highway

Function: Signal routing, communication transmission, discrete contact signal termination

Mounting: VME rack mount

Protection Class: IP20

Operating Temperature: -20℃ ~ +70℃

Weight:0.75kg
