Product Details:

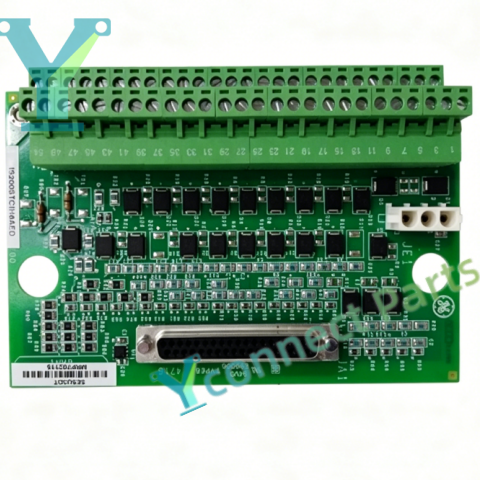

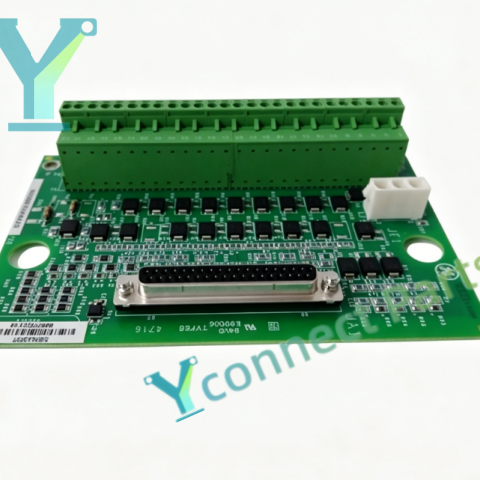

The GE IS200STCIH6AED, part number MRP683036, is a high-precision Thermocouple Input Terminal Board designed for GE Speedtronic Mark VI turbine control systems. This industrial control spare part serves as the front signal conditioning interface for thermocouple temperature sensors on gas and steam turbines. As a reliable Turbine Control Module, it receives millivolt signals from multiple types of thermocouples, including J, K, T, E, R, S, B and N types. It converts weak thermoelectric signals into standardized digital data for the main Mark VI controller, used for real-time monitoring of turbine exhaust temperature, combustion chamber temperature and bearing temperature.

The GE IS200STCIH6AED Thermocouple Input Terminal Board has built-in cold junction compensation circuits to eliminate measurement errors caused by terminal temperature changes. The conformal coated PCB can resist moisture, dust and vibration in harsh power plant environments. It is equipped with screw terminal blocks for convenient sensor wiring and on-site maintenance. Built-in surge protection and channel diagnostic functions help operators quickly detect open-circuit sensor faults. The board adopts VME rack mounting structure and supports simplex, dual and TMR redundant system architectures. It is widely used in power generation and oil & gas industries for gas turbine, steam turbine and compressor control system maintenance and spare part replacement.

Specifications:

Brand: GE

Model: IS200STCIH6AED

Material Part No.: MRP683036

Product Type: Thermocouple Input Terminal Board

Compatible System: GE Mark VI Speedtronic Turbine Control System

Supported Thermocouple: J,K,T,E,R,S,B,N

Compensation: Built-in cold junction compensation

Mounting: VME rack mount

Protection Class: IP20

Operating Temperature: -20℃ ~ +70℃

Weight: 0.6kg
