Product Details:

The GE IS200SPIDG1ABA is an Accessory ID Terminal Board (SPID), designed for GE Speedtronic Mark VIe distributed turbine control systems. This industrial control spare part is the matching terminal board for IS220PPRFH1B PROFIBUS master gateway I/O pack module. As a reliable Turbine Control Module, it provides the physical wiring interface and accessory identification function for the PPRF module. It carries PROFIBUS DP bus signal termination, shielding connection and surge protection, to establish stable communication links between the PPRF gateway and field PROFIBUS slave devices such as transmitters, valve positioners and motor control units. It automatically identifies the accessory hardware information and feeds back to the main controller for system configuration verification.

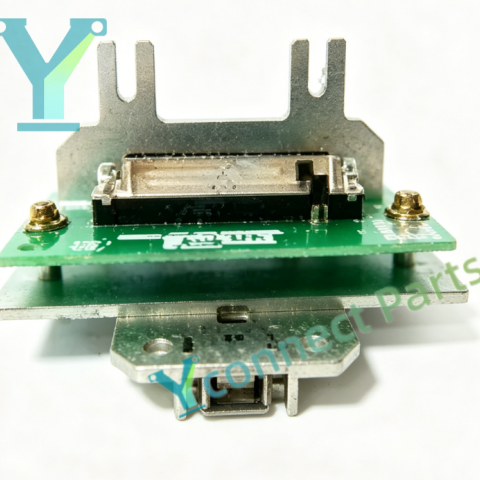

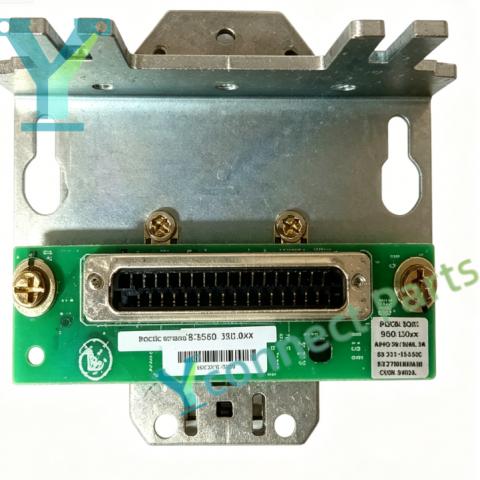

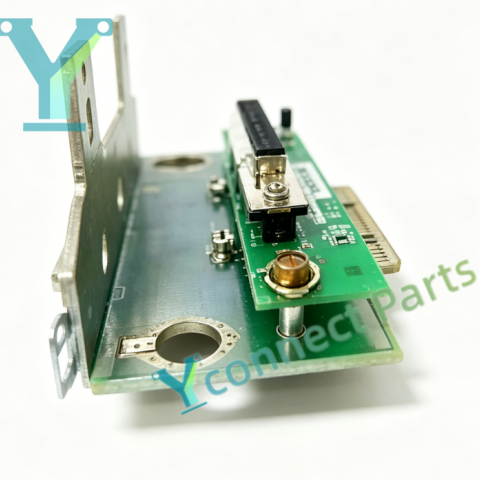

The GE IS200SPIDG1ABA Accessory ID Terminal Board adopts conformal coated PCB to resist dust, moisture and vibration in harsh power plant cabinet environments. It is equipped with D-SUB PROFIBUS connector and fixed metal mounting bracket for convenient installation and field wiring. The board supports simplex, dual and TMR redundant system architectures and rack mounting inside Mark VIe control cabinet. Built-in circuit monitoring functions can detect bus wiring faults and communication abnormality. It is widely used in power generation and oil & gas industries for gas turbine, steam turbine control system maintenance, spare part replacement and system retrofit.

Specifications:

Brand: GE

Model: IS200SPIDG1ABA

Product Type: Accessory ID Terminal Board

Compatible System: GE Mark VIe Speedtronic Turbine Control System

Matched Module: IS220PPRFH1B PROFIBUS master gateway pack

Function: PROFIBUS DP signal termination, accessory ID detection, bus shielding and surge protection

Connector: DE-9 D-sub PROFIBUS interface

Mounting: Cabinet rack mount with metal bracket

Protection Class:IP20

Operating Temperature:-20℃ ~ +70℃

Weight:0.38kg
