Product Details:

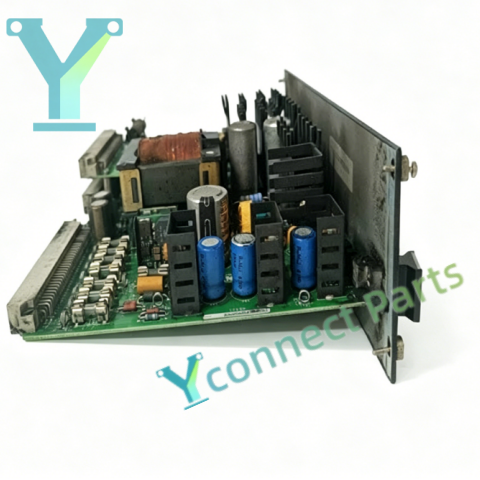

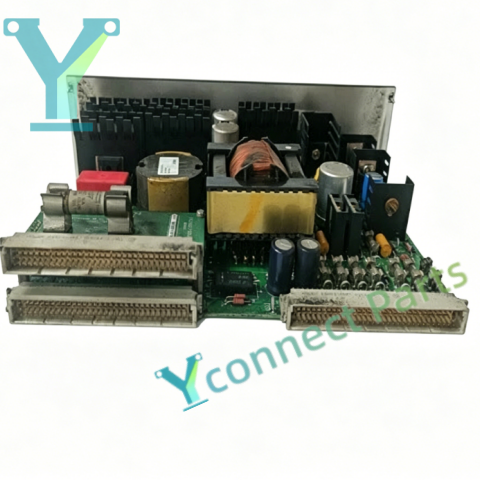

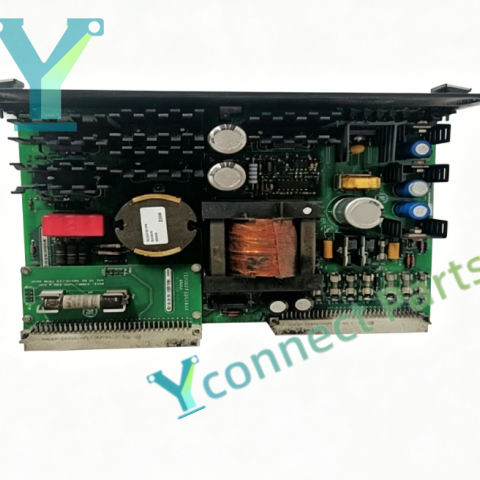

The GE IS200EPSMG2ADC is a high-reliability Exciter Power Supply Module (EPSM) designed for GE Speedtronic Mark VI turbine control systems and EX2100 generator excitation control systems. This industrial control spare part converts the input DC voltage into multiple isolated stable DC output rails, supplying clean and regulated power for sensitive analog interface boards, excitation control circuits and signal conditioning components in the control cabinet. As a reliable Turbine Control Module, it integrates built-in fuses, varistors and surge suppression circuits. It provides independent overcurrent, overvoltage and short-circuit protection for each power channel, preventing electrical damage to downstream control boards caused by power transients and circuit faults.

The GE IS200EPSMG2ADC Exciter Power Supply Module adopts conformal coated PCB to resist dust, moisture and vibration in harsh power plant environments. It is equipped with dedicated locking connectors to avoid misconnection, and LED status indicators display running state and power fault alarms in real time. The board supports simplex, dual and TMR redundant system architectures and VME rack mounting inside Mark VI control cabinet. Built-in power monitoring circuits can detect voltage loss and abnormal output. It is widely used in power generation and oil & gas industries for gas turbine, steam turbine and generator excitation control system maintenance, spare part replacement and system retrofit.

Specifications:

Brand: GE

Model: IS200EPSMG2ADC

Product Type: Exciter Power Supply Module

Compatible System: GE Mark VI Speedtronic Turbine Control System, EX2100 Excitation Control System

Output: +5VDC, ±15VDC, +24VDC multiple isolated regulated DC rails

Protection: Overcurrent, overvoltage, short-circuit protection, built-in fuse and surge suppression

Mounting: VME rack mount

Protection Class: IP20

Operating Temperature: -20℃ ~ +70℃

Weight:0.78kg
