Product Details:

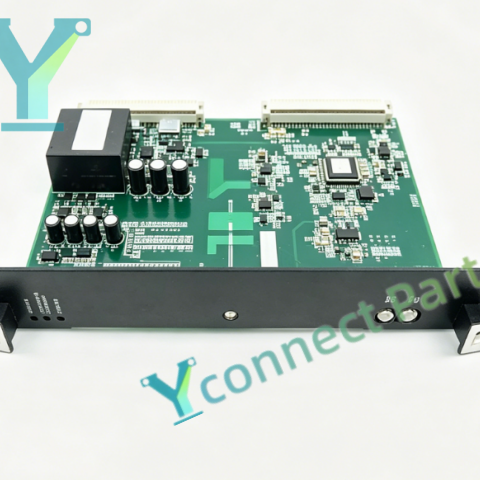

The GE IS200EGDMH1ADF is a high-performance Exciter Gate Driver Module (EGDM), designed for GE Speedtronic Mark VI turbine control systems and EX2100 generator excitation control systems. This industrial control spare part acts as the optical signal receiving and thyristor trigger driving unit for the excitation rectifier cabinet. As a reliable Turbine Control Module, it receives optical pulse commands from ACLE application control layer module, converts optical signals into isolated high-current gate drive pulses for the thyristor power stack. It implements accurate excitation current regulation for synchronous generators to maintain stable terminal voltage and power system stability. Meanwhile, it monitors the excitation field ground fault status, detects insulation degradation of the generator excitation winding and sends fault alarm signals to the main controller. It is an indispensable core component for gas turbine and steam turbine generator excitation protection.

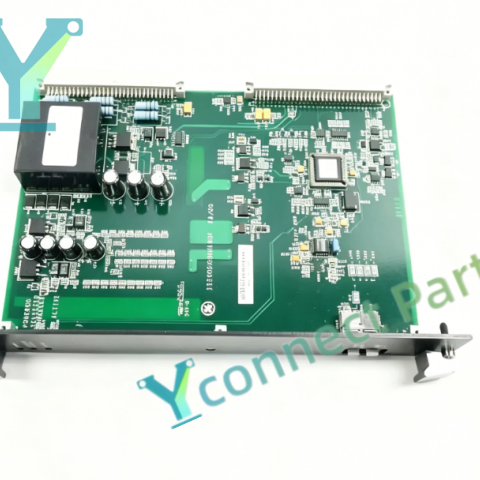

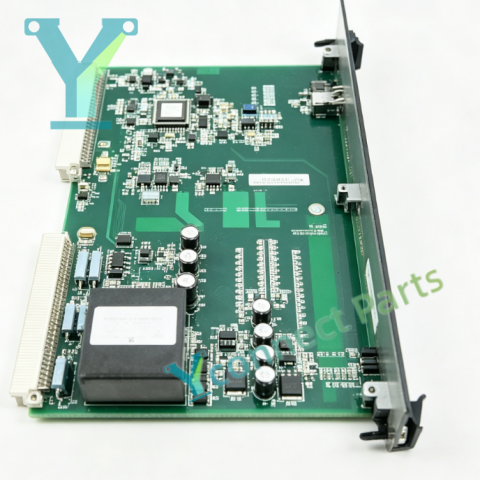

The GE IS200EGDMH1ADF Exciter Gate Driver Module adopts conformal coated PCB to resist dust, moisture and vibration in harsh power plant environments. It integrates optical signal receiving circuit, thyristor trigger amplifier and field ground fault detection circuit. Front panel LED indicators show power status, trigger pulse output and ground fault alarm status. The board supports simplex, dual and TMR redundant system architectures and VME rack mounting inside EX2100 excitation cabinet. Built-in self-diagnostic functions can detect optical signal loss, drive circuit abnormality and excitation field ground faults timely. It is widely used in power generation and oil & gas industries for generator excitation control system maintenance, spare part replacement and system retrofit.

Specifications:

Brand: GE

Model: IS200EGDMH1ADF

Product Type: Exciter Gate Driver Module

Compatible System: GE Mark VI Speedtronic Turbine Control System, EX2100 Excitation Control System

Function: Optical command reception, thyristor gate pulse driving, excitation field ground fault detection

Input Interface: Optical fiber command input

Drive Output: Isolated thyristor trigger pulses

Mounting: VME rack mount

Protection Class:IP20

Operating Temperature:-20℃ ~ +70℃

Weight:1.18kg
