Product Details:

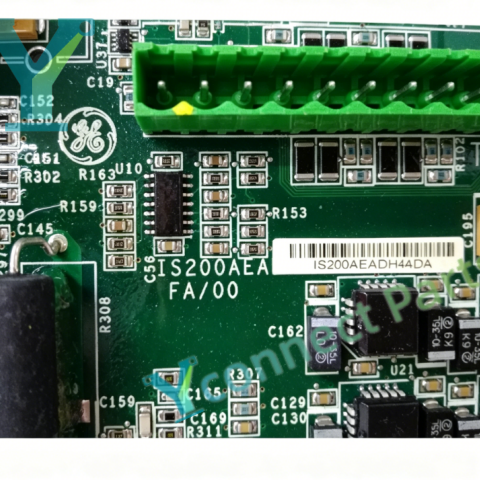

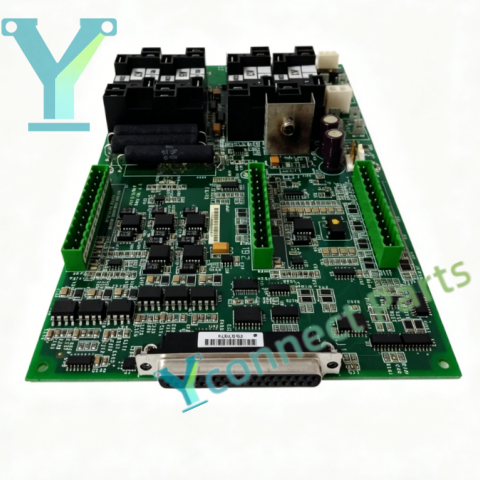

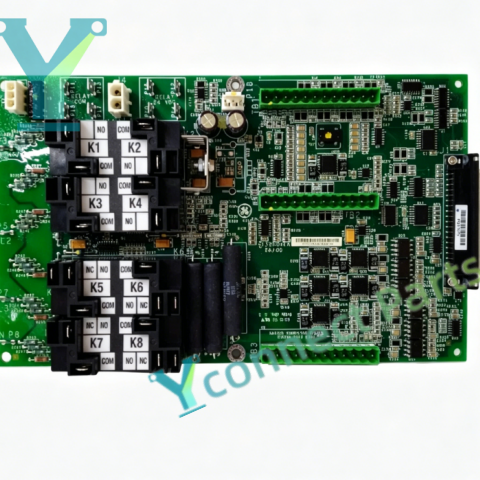

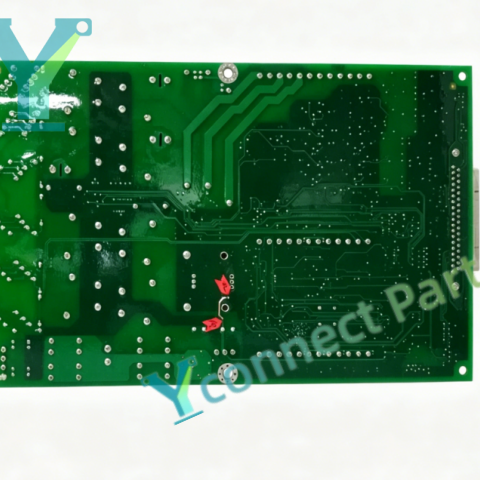

The GE IS200AEADH4ADA is a high-performance Analog I/O Terminal Board designed for GE Speedtronic Mark VI turbine control systems, also compatible with EX2100 excitation control systems. This industrial control spare part serves as the field signal termination and conditioning board for grid feedback, excitation monitoring and process analog signals. As a reliable Turbine Control Module, it receives analog voltage and current signals from voltage transformers, current transformers and field transmitters, and transfers conditioned measurement signals to the main control board for generator excitation regulation and turbine interlock logic. It adopts multi-stage hardware filter circuits to filter high-frequency noise interference in power plant sites.

The GE IS200AEADH4ADA Analog I/O Terminal Board uses conformal coated PCB to defend against dust, moisture and vibration in harsh power generation environments. It is equipped with dedicated terminal blocks for convenient field wiring and maintenance. Built-in channel diagnostic functions can detect open circuit and abnormal signal status. The board adopts VME rack mounting design and supports simplex, dual and TMR redundant system architectures. It can work stably under long-term continuous operation conditions. It is widely used in power generation and oil & gas industries for gas turbine, steam turbine and generator excitation control system maintenance and spare part replacement.

Specifications:

Brand: GE

Model: IS200AEADH4ADA

Product Type: Analog I/O Terminal Board

Compatible System: GE Mark VI Speedtronic Turbine Control System, EX2100 Excitation System

Function: Analog signal termination, conditioning and grid feedback acquisition

Filter: Multi-stage hardware noise suppression filter

Mounting: VME rack mount

Protection Class: IP20

Operating Temperature: -20℃ ~ +65℃
