Product Details:

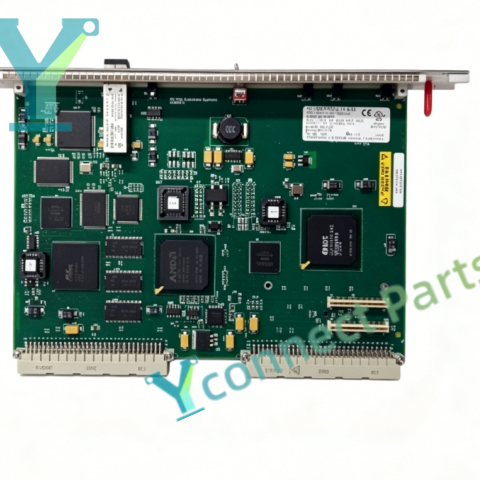

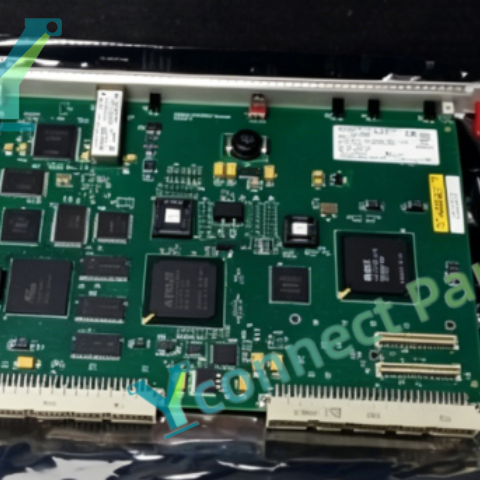

GE IC698RMX016 VMIVME-5567-100 is a high-speed redundancy memory xchange reflective memory module designed for GE Fanuc PACSystems RX7i platform. This reflective memory module serves as the dedicated data synchronization unit for RX7i redundant CPU systems, realizing real-time mirroring of control data between primary and standby CPUs to achieve bumpless switchover once the main CPU fails. The redundancy memory xchange module adopts fiber optic LC interface with 2.12Gbaud transmission rate, supporting deterministic data sharing across the reflective memory network. It is equipped with 16MB parity-enabled SDRAM, ensuring data integrity during high-speed transmission. The module can also work as a common node on reflective memory loop network, connecting up to 256 nodes in daisy-chain topology, and it is fully compatible with VMIC 5565 series reflective memory devices. LED indicators on front panel display module status, network activity and fiber link condition for fast fault diagnosis. It adopts single-slot VME rack plug-in structure for RX7i chassis, easy installation and maintenance. Widely applied in power generation, petrochemical and large process industries, this reflective memory module guarantees zero-loss data synchronization for high-availability industrial control systems.

Specifications:

Manufacturer: GE Fanuc VMIC

Model: IC698RMX016, VMIVME-5567-100

Product Type: Redundancy Memory Xchange / Reflective Memory Module

Applicable Series: PACSystems RX7i

Onboard Memory: 16MB parity SDRAM

Interface: LC multimode fiber optic

Data Rate: 2.12Gbaud

Max Network Nodes: 256 nodes, daisy chain loop

Transmission Distance: Up to 2km for multimode fiber

Power Supply: 5VDC, max 1.8A

Mounting: Single slot VME rack mount

Status Indicator: OK, configuration, data activity, fiber signal LEDs

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: UL,CE
