Product Details:

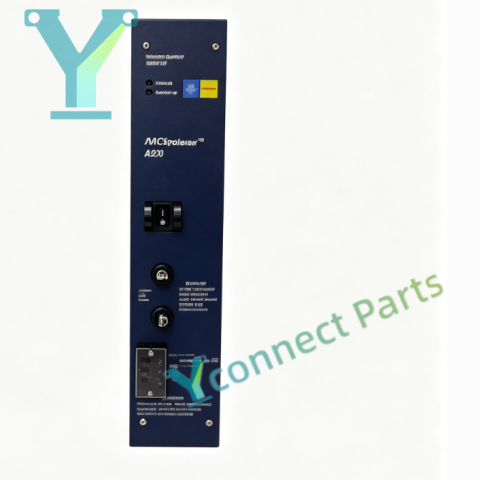

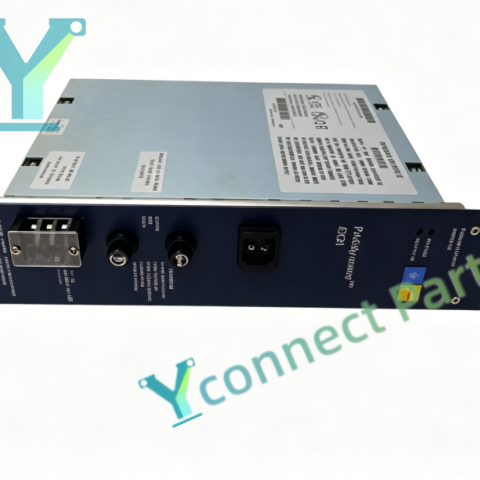

GE IC698PSA100 is a rack mount power supply module designed for GE Fanuc PACSystems RX7i VME automation chassis. This PACSystems power module is installed in slot 0 of the RX7i main rack, supplying stable +5VDC, +12VDC and -12VDC power and logic sequencing signals to all CPU, communication and I/O modules on the VME backplane. The RX7i power supply module accepts wide-range dual input including 85~264VAC and 100~150VDC, with built-in active power factor correction for AC input to reduce power consumption and harmonic interference. It offers total 100W output power under 0℃ to 60℃ ambient temperature without forced air cooling. Integrated protection circuits include overcurrent, overvoltage and overtemperature protection to avoid damage to the power unit and backplane modules under abnormal electrical conditions. The module maintains output power for at least one AC input line cycle when temporary power dip occurs, preventing unexpected system shutdown. Front panel has power switch and LED status indicators for operators to quickly check power working status. Adopting slide-in plug-in structure, the module can be replaced conveniently for maintenance. This power supply module is widely deployed in power plants, petrochemical, metallurgy and heavy process industries, providing reliable and continuous power support for PACSystems RX7i control systems.

Specifications:

Manufacturer: GE Fanuc

Model: IC698PSA100

Product Type: RX7i Power Supply Module

Series: PACSystems RX7i

Installation Slot: Slot 0 of RX7i main rack

Input Range: 85~264VAC, 100~150VDC, 47~63Hz

Total Output Power: 100W

Output Channels: +5VDC up to 20A, +12VDC up to 2A, -12VDC up to 1A

Protection Features: Overcurrent, overvoltage, overtemperature protection

Power Factor Correction: Built-in for AC input

Mounting: Slide-in VME rack mount

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: UL,CE,CSA
