Product Details:

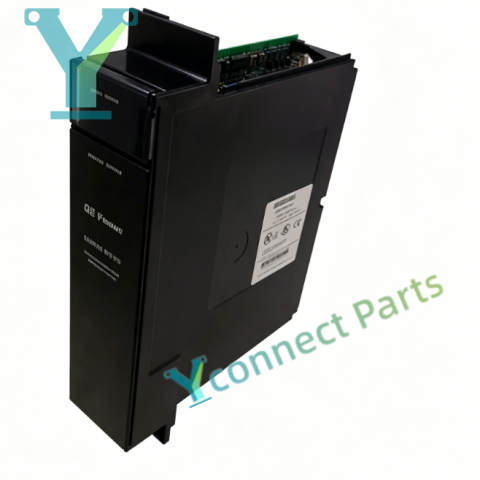

GE IC697PWR748D is a 90W rack mount power supply module developed for GE Fanuc Series 90-70 PLC platform. This PLC power module is installed in the leftmost slot of the Series 90-70 rack, connected to the 48-pin backplane connector. It converts 48VDC input into +5VDC, +12VDC and -12VDC regulated power, and transmits logic sequencing signals to all CPU, I/O and communication modules on the PLC backplane. The Series 90-70 power supply module supports single rack operation, and it can also supply power to a second expansion rack via IC697CBL700 cable under allowable load. It provides electronic overcurrent and short-circuit protection on the +5VDC bus, automatically limiting output current to prevent damage to backplane modules during circuit faults. The module can sustain 10ms power ride-through under full load when temporary input power loss occurs, avoiding unexpected PLC shutdown. Front panel status LEDs help technicians quickly check power working status and fault diagnosis. Adopting slide-in plug-in structure, this PLC power module is easy to install and replace during system maintenance. It is widely used in power plants, petrochemical, metallurgy and heavy manufacturing industries, providing stable and reliable backplane power supply for Series 90-70 PLC control systems.

Specifications:

Manufacturer: GE Fanuc

Model: IC697PWR748D

Product Type: Series 90-70 PLC Power Supply Module

Series: Series 90-70 PLC

Input Voltage: 35 ~ 60VDC, nominal 48VDC

Total Output Power: 90W

DC Output: +5VDC up to 18A, +12VDC up to 1.5A, -12VDC up to 1A

Protection: Electronic overcurrent, short-circuit protection for 5V bus

Power Ride-through: 10ms at full load

Expansion Function: Support power supply for second rack with IC697CBL700 cable

Mounting: Slide-in rack mount, leftmost rack slot

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: UL,CE,CSA
