Product Details:

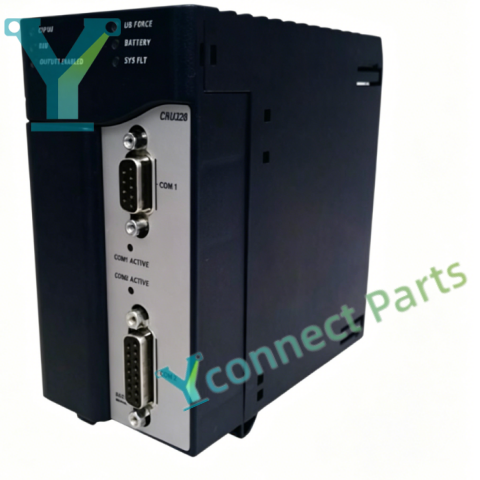

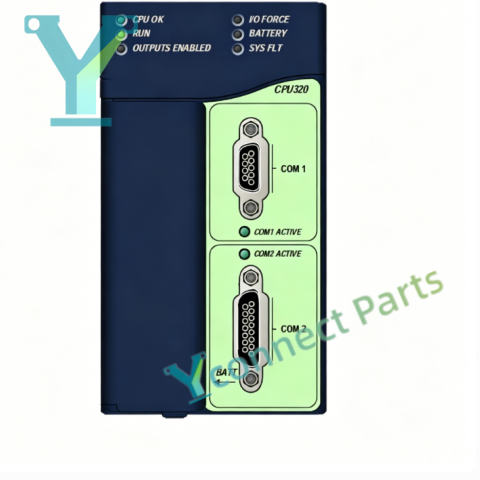

GE IC695CRU320 is a high-performance redundant CPU module for GE Fanuc PACSystems RX3i automation platform. This PAC controller module is equipped with a 1GHz Intel Celeron-M processor with floating-point arithmetic capability, delivering fast logic execution and complex process control calculation. The RX3i redundant CPU module supports hot standby redundancy architecture, paired with IC695RMX128 or IC695RMX228 memory exchange module to achieve bumpless switchover within 3.133ms when the primary CPU fails, avoiding production interruption for critical industrial systems. It is built with 64MB battery-backed RAM and 64MB non-volatile flash memory for secure storage of user control programs and process data. Two built-in serial ports support RS232 and RS485, compatible with Modbus RTU and SNP protocols. Additional Ethernet communication can be realized by matching RX3i communication modules. This PAC controller module supports up to 131072 discrete I/O points and 16384 analog I/O points, and it can handle PID closed-loop control and motion control for up to 64 axes. It adopts single-slot rack mounting design on RX3i backplane, programmed via Proficy Machine Edition software with ladder diagram, structured text and function block diagram. Widely used in power plants, petrochemical, pharmaceutical and large manufacturing industries, this RX3i redundant CPU module ensures continuous and stable operation of high-reliability industrial control systems.

Specifications:

Manufacturer: GE Fanuc

Model: IC695CRU320

Product Type: RX3i Redundant CPU Module

Series: PACSystems RX3i

Processor: 1GHz Intel Celeron-M with floating-point support

RAM: 64MB battery-backed

Flash Memory: 64MB non-volatile

Serial Interface: 2 ports, RS232/RS485

Redundancy: Hot standby, bumpless switchover ≥3.133ms

Compatible Redundancy Module: IC695RMX128, IC695RMX228

Max Discrete I/O: 131072 points

Max Analog I/O: 16384 points

Motion Control: Up to 64 axes

Programming Software: Proficy Machine Edition

Mounting: RX3i rack single slot

Power Consumption: 350mA @5VDC

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: UL,CE,CSA
