Product Details:

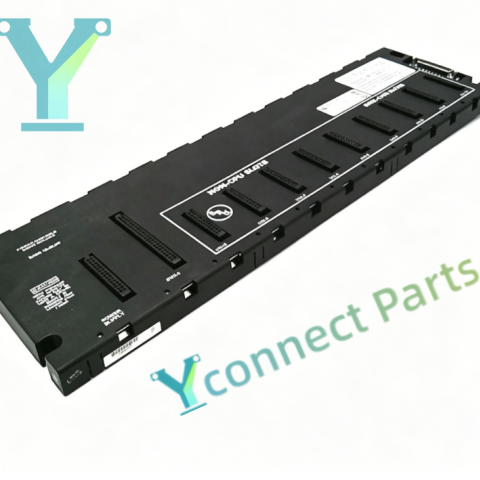

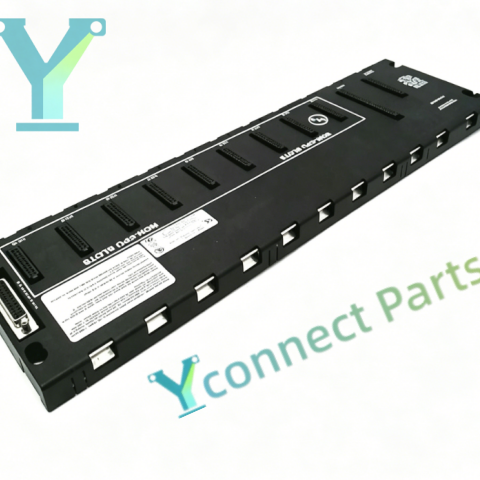

GE IC693CHS391 is a 10-slot CPU baseplate developed for GE Fanuc Series 90-30 PLC system. This PLC backplane provides physical installation position and internal 5VDC bus communication for CPU, power supply, I/O and communication modules. The 10-slot baseplate reserves slot 0 for CPU module, and slots 1 to 9 can be equipped with various I/O modules and special function modules. It is fitted with a 25-pin expansion connector on the right side, supporting connection with up to 7 additional expansion baseplates to expand the overall I/O capacity of the PLC system. This PLC backplane adopts reliable internal bus design to ensure stable data transmission and power distribution between all installed modules. It supports DIN rail or panel mounting, which is convenient for cabinet layout and field installation. The GE IC693CHS391 baseplate is fully compatible with all standard modules of Series 90-30 PLC. It is widely used in factory automation, water treatment, power and chemical industries to build stable and scalable PLC control systems.

Specifications:

Manufacturer: GE Fanuc

Model: IC693CHS391

Product Type: 10-Slot CPU Baseplate

Applicable Series: Series 90-30 PLC

Total Slots: 10 slots

Backplane Bus: 5VDC, max 420mA

Expansion Port: 25-pin female D-shell connector

Max Expansion Baseplates: 7

Mounting: DIN rail or panel mount

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: UL,CE
