Product Details:

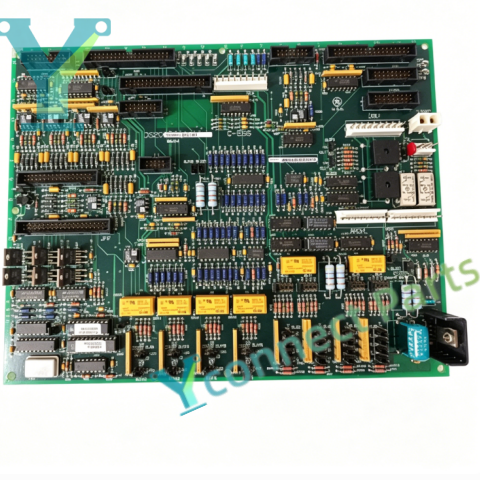

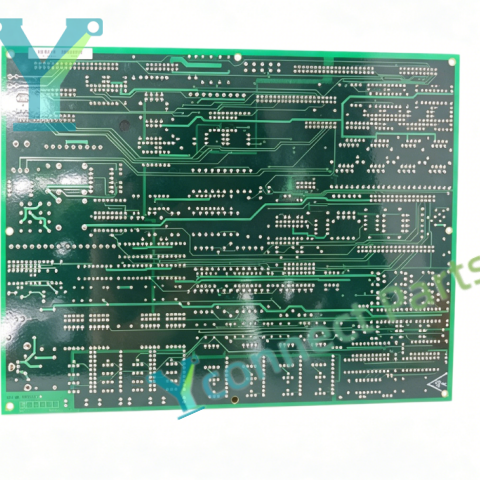

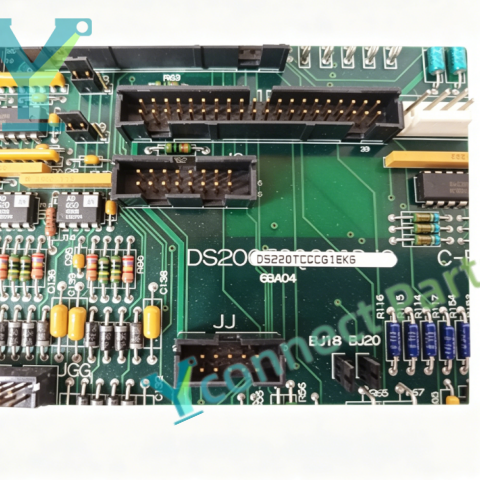

The GE DS200TCQCG1BKG analog input output board is a high-performance signal processing component designed for GE Mark V Speedtronic turbine control systems. This analog input output board is responsible for receiving analog measurement signals from field transmitters and sensors, converting analog signals into digital data for the turbine controller, and outputting analog control commands to drive field actuators. As a reliable mark v speedtronic board, it integrates multiple signal channels with built-in noise filtering and surge protection circuits, which can reduce electromagnetic interference from heavy power equipment in power plants. Visible LED indicators on the PCB help technicians check channel working status and troubleshoot faults rapidly during routine maintenance. The circuit board adopts conformal coated multi-layer PCB design to defend against dust, moisture and mechanical vibration inside the control cabinet. As a vital ge turbine control board, it supports standard 4-20mA and voltage analog signals, widely used in gas turbine, steam turbine, power generation and oil & gas industrial control projects. When the original board appears signal deviation, channel damage or component aging after long time operation, this replacement spare part can be installed to recover full analog I/O functions, clear abnormal alarms and prevent unplanned turbine unit shutdown. Every board passes comprehensive channel testing and compatibility inspection before delivery to ensure stable performance and perfect match with Mark V control racks.

Specifications:

Brand: GE

Model: DS200TCQCG1BKG

Product Type: Analog Input Output Board

Series: Mark V Speedtronic

Supported Signal: 4-20mA, analog voltage signal

Status Indicator: Onboard LED status indicators

Mounting: Standoff mounting inside turbine control cabinet

PCB Feature: Conformal coated multi-layer PCB

Operating Temperature: -40℃ ~ +70℃

Environmental Feature: Anti-vibration, dust and moisture resistant

Weight: Approx 0.75kg
