Product Details:

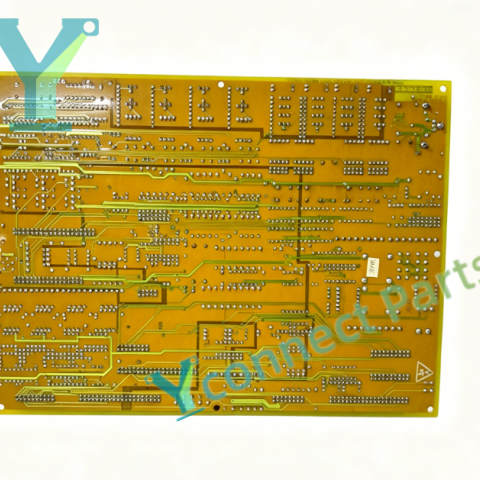

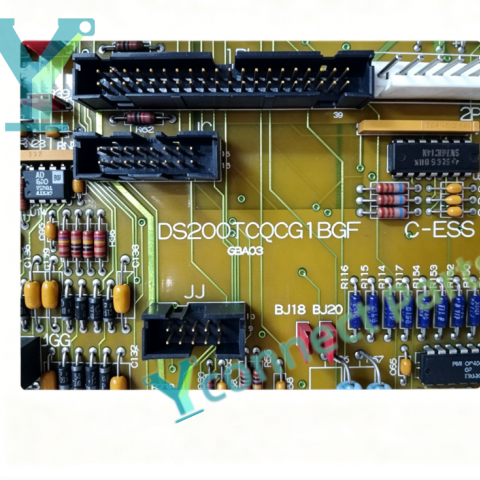

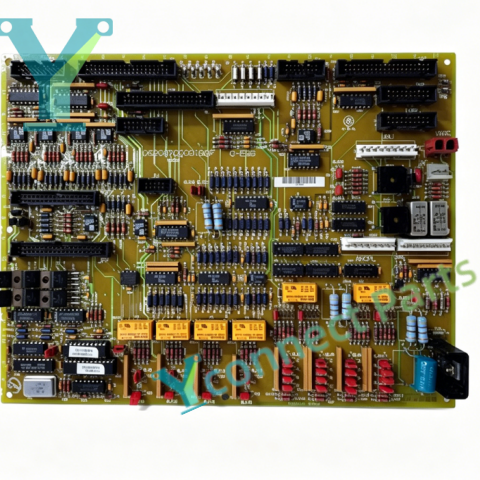

The GE DS200TCQCG1BGF is a high-reliability TCQC Analog I/O Expansion Board for GE Speedtronic Mark V turbine control systems. This industrial control spare part expands analog input and output channels for the main controller. As a reliable Turbine Control Module, it collects field analog signals including temperature, pressure and flow, and outputs analog control signals to actuators. It completes signal conditioning and noise filtering, transmits processed analog data to the main control board for gas turbine and steam turbine monitoring and closed-loop regulation.

The GE DS200TCQCG1BGF TCQC Analog I/O Expansion Board adopts conformal coated PCB to resist dust, moisture and vibration in harsh power plant environments. It reserves configurable jumpers for hardware signal range setup. Onboard LED indicators show power status, channel and hardware fault alarms. The board supports simplex, dual and TMR redundant system architectures and rack mounting inside Mark V control cabinet. Built-in channel self-diagnostic functions can detect signal loss and circuit abnormality. It is widely used in power generation and oil & gas industries for turbine control system maintenance, spare part replacement and system retrofit.

Specifications:

Brand: GE

Model: DS200TCQCG1BGF

Product Type: TCQC Analog I/O Expansion Board

Compatible System: GE Mark V Speedtronic Turbine Control System

Function: Analog signal acquisition, analog output control, signal conditioning

Signal Type: Voltage / current analog signals

Mounting: Rack mount

Protection Class:IP20

Operating Temperature:-20℃ ~ +70℃

Weight:0.85kg
