Product Details:

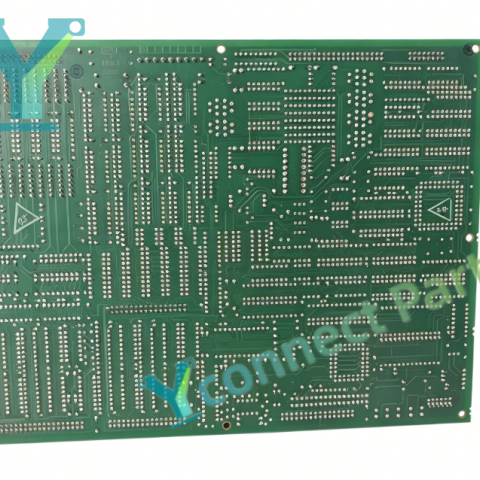

The GE DS200TCQAG1BHF-W01 DS215TCQAG1BZZ01A analog i/o board assembly is a matched set of signal processing hardware for GE Mark V Speedtronic turbine control systems. This analog i/o board consists of main processing card DS200TCQAG1BHF-W01 and supporting terminal board DS215TCQAG1BZZ01A, forming a complete analog input and output signal acquisition and control unit. It collects 4-20mA, voltage and other analog signals from field sensors such as pressure transmitters and temperature detectors, converts analog signals into digital data for the turbine controller, and outputs analog control signals to drive field actuators. As a stable mark v speedtronic board, the terminal board provides abundant screw terminals for convenient on-site wiring, with built-in signal filtering and surge suppression circuits to block electromagnetic noise interference generated by power equipment. The PCB of both boards adopts conformal coating treatment to resist dust, moisture and continuous mechanical vibration inside the power plant control cabinet. Equipped with status indicator LEDs on the main board, maintenance staff can quickly check channel operating status and locate faults. As an essential ge turbine control board, it is widely used in gas turbine, steam turbine and generator control projects of thermal power plants, oil & gas and petrochemical industries. When the original matched board assembly suffers signal drift, channel failure or component aging, this spare set can be installed to restore complete analog I/O functions, eliminate abnormal system alarms and avoid unplanned shutdown of turbine generator units. Every set undergoes full channel function testing and compatibility verification before shipment to guarantee stable operation and seamless matching with Mark V control racks.

Specifications:

Brand: GE

Model: DS200TCQAG1BHF-W01, DS215TCQAG1BZZ01A

Product Type: Matched Analog I/O Board Assembly

Series: Mark V Speedtronic

Supported Signal: 4-20mA analog signal, 0-10V voltage signal

Indicator: Built-in status LED indicators

Mounting: Rack standoff mounting inside turbine control cabinet

PCB Feature: Conformal coated multi-layer PCB

Operating Temperature: -40℃ ~ +70℃

Environmental Feature: Anti-vibration, dust and moisture resistant

Weight: Approx 0.86kg
