Product Details:

The GE DS200TCEBG1ACE thermocouple input terminal board is a core hardware component built exclusively for GE Mark VI Speedtronic turbine control systems. As a high-performance thermocouple input board, its primary purpose is to acquire low-level millivolt signals generated by field thermocouple sensors deployed across gas and steam turbine units. The board integrates built-in cold junction compensation circuitry, which corrects temperature measurement deviations caused by terminal temperature changes, ensuring accurate and reliable temperature readings. After signal conditioning and conversion, processed data is forwarded to the system I/O processor for continuous real-time temperature monitoring, over-temperature alarm and equipment protection functions. This mark vi speedtronic board adopts heavy-duty PCB layout and anti-electromagnetic interference components, which can operate stably under severe industrial conditions including vibration, dust and electromagnetic noise in power plants. It supports J, K and T standard thermocouple types, and provides compact and reliable screw terminal blocks for convenient on-site wiring and sensor connection. As a critical ge turbine control board, it is widely adopted in power generation, oil & gas and heavy industrial turbine control projects. When the original control board suffers circuit failure or aging, users can use this spare part to replace the faulty unit, restore the complete data acquisition function of the turbine control system, and avoid unplanned unit shutdown and production loss. It undergoes strict factory testing to guarantee stable performance and compatibility with the original Mark VI system.

Specifications:

Brand: GE

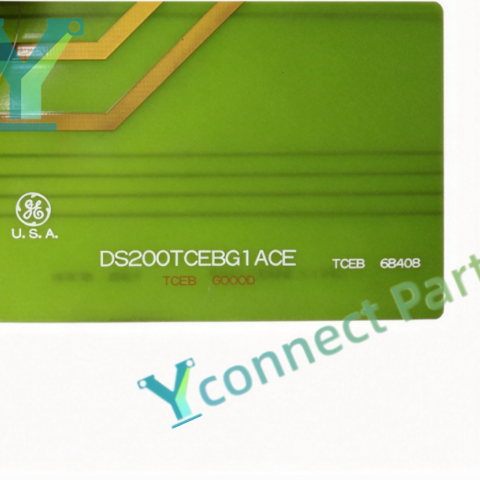

Model: DS200TCEBG1ACE

Product Type: Thermocouple Input Terminal Board

Series: Mark VI Speedtronic

Supported Thermocouple Type: J, K, T

Mounting: Rack mount for turbine control cabinet

Application: Gas turbine, steam turbine control system

Operating Temperature: -40℃ ~ +70℃

Storage Temperature: -40℃ ~ +125℃

Environmental Feature: Anti-vibration, anti-electromagnetic interference

Weight: 0.794kg
