Product Details:

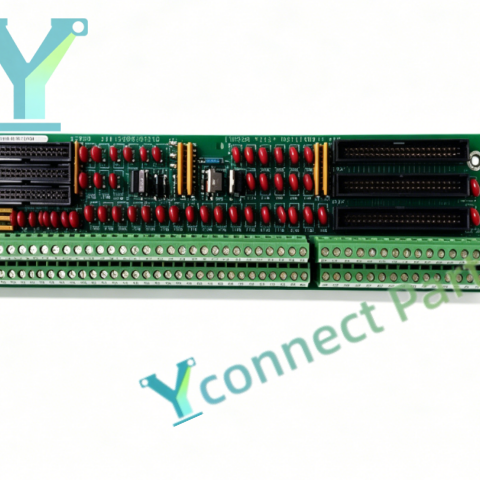

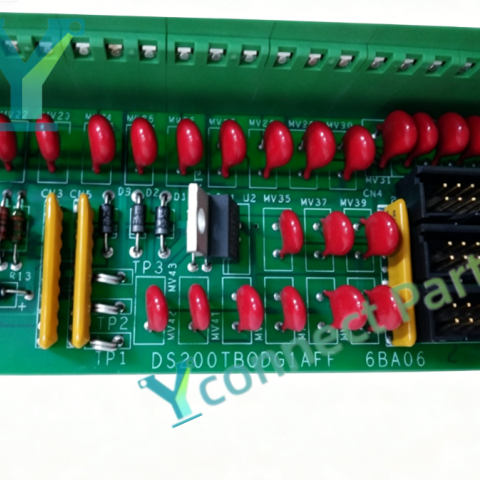

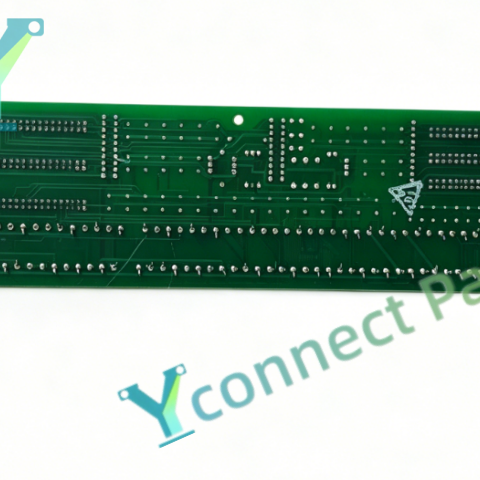

The GE DS200TBQDG1AFF termination barrier terminal board is a vital hardware component developed for GE Speedtronic Mark V turbine control systems. This termination barrier terminal board acts as the signal bridge between field sensors, actuators and the main I/O modules of the turbine control rack. It provides abundant screw terminal points for field wiring connection, supports signal isolation and filtering to reduce electromagnetic interference generated by power equipment. As a professional speedtronic mark v board, it is built with dual-row terminal blocks and reserved test points, which makes on-site wiring, circuit inspection and daily maintenance much more convenient. The board adopts conformal coated PCB design to resist moisture, dust and vibration inside the power plant control cabinet. It can handle contact input signals and solenoid output signals for gas turbines and steam turbines. As a reliable ge turbine control board, it is widely used in power generation, oil and gas industries. When the original terminal board suffers aging or circuit damage, this spare part can be installed to restore the complete signal transmission path of the turbine control system, prevent unexpected unit shutdown and guarantee stable operation of large rotating machinery. It has passed strict factory testing to ensure good compatibility and stable performance with Mark V triple modular redundant control systems.

Specifications:

Brand: GE

Model: DS200TBQDG1AFF

Product Type: Termination Barrier Terminal Board

Series: Speedtronic Mark V

Connection Type: Dual-row screw compression terminals

Supported Signal: Contact inputs, solenoid outputs

Mounting: DIN-rail or standoff mounting inside control cabinet

Wiring Gauge: Supports up to 12 AWG field wiring

Operating Temperature: -40℃ ~ +70℃

Environmental Feature: Conformal coated PCB, anti-vibration, moisture resistance

Weight: Approx 0.56kg
