Product Details:

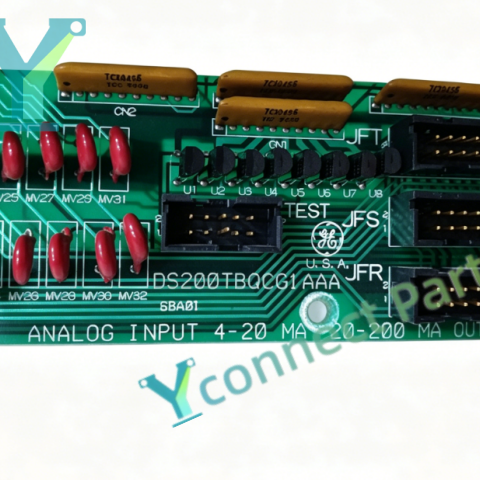

The GE DS200TBQCG1AAA termination barrier terminal board is a robust field wiring interface component designed for GE Mark V Speedtronic turbine control systems. This termination barrier terminal board serves as the critical signal transition layer between on-site sensors, actuators, switch contacts and the internal I/O modules mounted on the turbine control rack. It provides organized dual-row screw terminal blocks for easy field cable termination, and integrates signal conditioning circuitry to suppress electrical noise and transient surges from industrial power distribution systems. As a professional mark v speedtronic board, it features built-in fuse protection, snubber circuits and opto-isolation channels for contact input signals, which prevents external faults from propagating into the central controller. The PCB is treated with conformal coating to resist dust, humidity and corrosive gases commonly found in power plant environments, and the mechanical design supports vibration-resistant standoff installation. It handles both discrete contact inputs from pushbuttons, limit switches and proximity probes, as well as low-current outputs driving solenoid valves and indicator lamps. As a dependable ge turbine control board, it is widely deployed in combined cycle power plants, gas compressor stations, oil refineries and petrochemical facilities using Mark V triple modular redundant control architectures. When the original terminal board shows signs of corrosion, loose wiring contacts or insulation degradation after years of service, this replacement spare part can be directly fitted to restore complete signal integrity, eliminate intermittent fault alarms and prevent costly unplanned shutdowns of turbine-generator units. Every unit undergoes full functional testing prior to shipment to guarantee mechanical compatibility, signal continuity and long-term reliability.

Specifications:

Brand: GE

Model: DS200TBQCG1AAA

Product Type: Termination Barrier Terminal Board

Series: Mark V Speedtronic

Supported Signal: Discrete contact inputs, solenoid outputs

Isolation: Opto-coupled input channels, snubber circuits

Protection: On-board fuse protection per channel

Mounting: Standoff mounting inside control cabinet

PCB Feature: Conformal coated, multi-layer construction

Operating Temperature: -40℃ ~ +70℃

Environmental Feature: Anti-vibration, dust and moisture resistant

Weight: Approx 0.58kg
