Product Details:

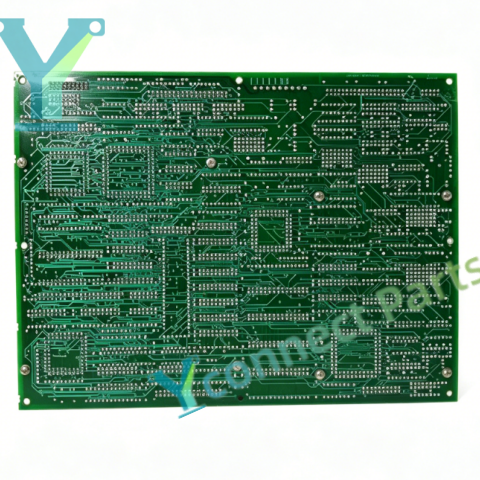

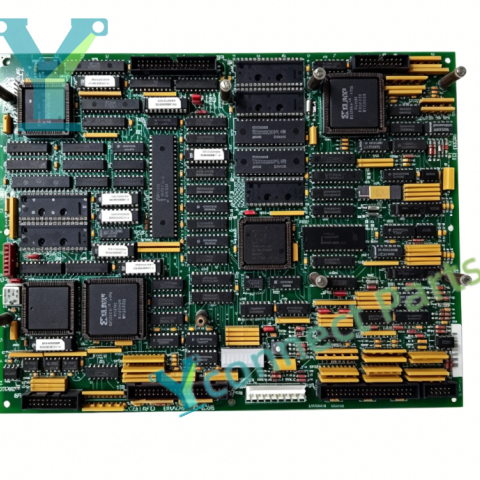

The GE DS200SDCCG5AHD drive control board is a core plug-in control hardware developed for GE Mark V Speedtronic turbine control and excitation systems. This drive control board integrates multiple microprocessors, dedicated logic chips and EPROM memory slots, which store system firmware and configuration parameters for drive and exciter regulation tasks. As a professional mark v speedtronic board, it handles closed-loop speed control, torque regulation and comprehensive fault diagnosis for the power drive unit. It communicates with other I/O boards via the rack backplane, receives feedback signals of current, voltage and rotating speed, and outputs control commands to power switching components. The board is equipped with DIP switches, jumper arrays and reset buttons for convenient on-site configuration and debugging. It supports daughter card installation through vertical pin connectors to expand communication and signal acquisition functions. The PCB is processed with conformal coating to protect internal circuits from dust, moisture and continuous mechanical vibration inside power plant control cabinets. As a reliable ge turbine control board, it is widely used in gas turbine generator excitation control, steam turbine auxiliary drive, oil & gas and petrochemical heavy industry projects. When the original control board suffers firmware corruption, processor failure or circuit aging, this spare part can be replaced to restore the complete drive control function, eliminate drive fault alarms and avoid emergency shutdown of turbine units. Every board undergoes full function testing and backplane communication verification before delivery to guarantee stable operation and compatibility with Mark V control racks.

Specifications:

Brand: GE

Model: DS200SDCCG5AHD

Product Type: Drive Control Board

Series: Mark V Speedtronic

Memory: Multiple EPROM slots for firmware storage

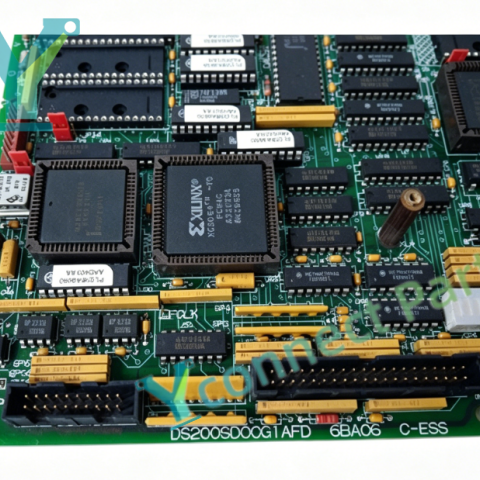

Onboard Components: Multi microprocessors, Xilinx logic chips, DIP switches, reset button

Expansion Interface: Vertical pin connectors for daughter board mounting

Mounting: Plug-in installation inside DS200 control rack

PCB Feature: Conformal coated multi-layer PCB

Operating Temperature: -40℃ ~ +70℃

Environmental Feature: Anti-vibration, dust and moisture resistant

Weight: Approx 0.78kg
