Product Details:

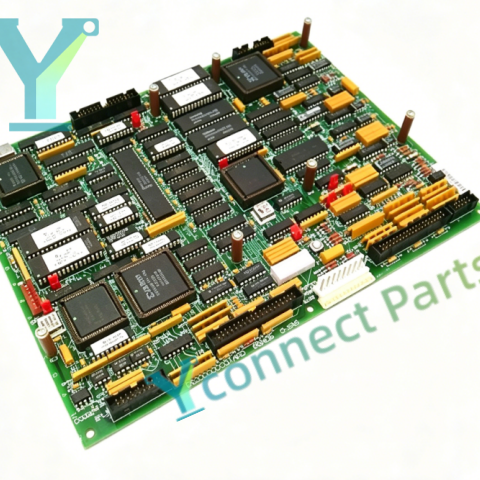

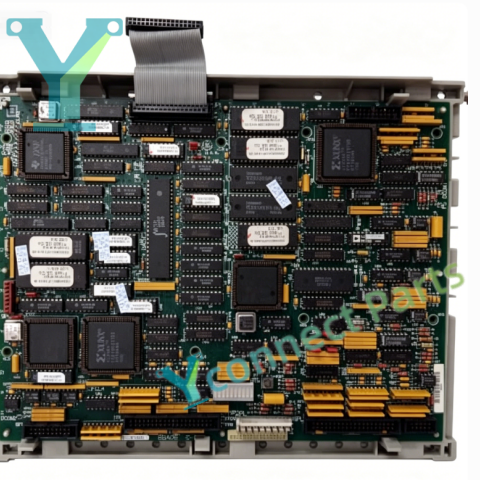

The GE DS200SDCCG1AGD matched with DS215SDCCG1AZZ01B is a high-reliability SDCC Drive Control Board assembly for GE Speedtronic Mark V turbine control and EX2000 excitation systems. This industrial control spare part adopts triple microprocessor architecture including DCP, MCP and CMP processors. It handles drive closed-loop control, analog and digital I/O signal processing, and encoder signal acquisition. It exchanges real-time data with other Mark V boards via LAN bus, implements excitation current and torque regulation for synchronous generators, and provides fast protection response for gas turbines and steam turbines.

The GE DS200SDCCG1AGD SDCC Drive Control Board uses conformal coated PCB to resist dust, moisture and vibration in power plant environments. It has 10 LED diagnostic indicators to display operating status and fault codes. The board supports simplex, dual and TMR redundant system architectures and rack mounting inside Mark V control cabinet. Built-in comprehensive self-diagnostic functions can detect processor faults, bus communication errors and signal circuit abnormalities. It is widely used in power generation and oil & gas industries for generator excitation control system maintenance, spare part replacement and system retrofit.

Specifications:

Brand: GE

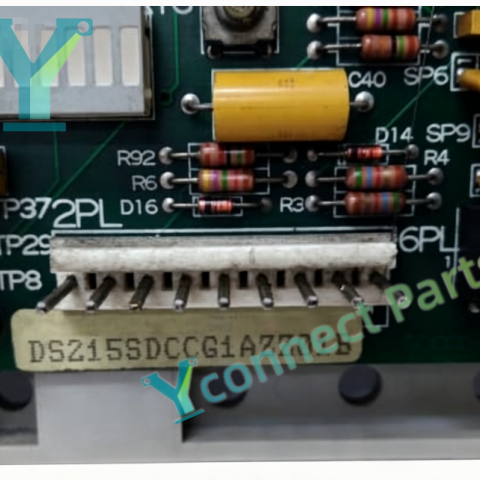

Model: DS200SDCCG1AGD, DS215SDCCG1AZZ01B

Product Type: SDCC Drive Control Board Assembly

Compatible System: GE Mark V Speedtronic Turbine Control System, EX2000 Excitation System

Onboard Processors: DCP, MCP, CMP three microprocessors

Function: Drive closed-loop control, I/O processing, encoder signal acquisition, fault diagnosis

Diagnostic: 10-channel LED fault code display

Mounting: Rack mount

Protection Class:IP20

Operating Temperature:-20℃ ~ +70℃

Weight:1.0kg
