Product Details:

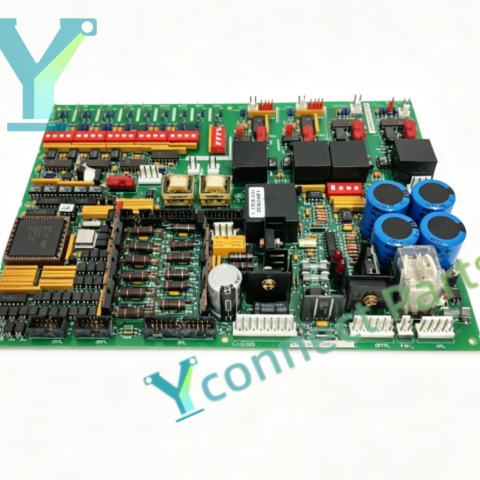

The GE DS200DCFBG1BNC dc power feedback board is an essential power monitoring spare part designed for GE Mark V Speedtronic turbine control systems. This dc power feedback board collects direct current and voltage signals from the power conversion unit, converts the sampled power parameters into standard digital signals, and feeds the data back to the main turbine controller for closed-loop power regulation and overload protection. As a professional mark v speedtronic board, it is equipped with precision sampling resistors and signal isolation circuits, which can effectively isolate high voltage power circuits from low voltage control circuits to avoid signal interference and protect the main control rack. The PCB of this board adopts conformal coating treatment, which can withstand dust, humidity and continuous mechanical vibration in the harsh working environment of power plants. It can continuously monitor DC power output, current and voltage values, and trigger alarm signals once the power exceeds the preset threshold. As a critical ge turbine control board, it is widely used in gas turbine and steam turbine generator sets, oil & gas compressor stations and petrochemical power control systems. When the original board has sampling deviation, signal interruption or component aging, users can install this replacement spare part to recover accurate power feedback function, prevent overload damage to power units and ensure safe and stable operation of the whole turbine system. Each board undergoes complete signal sampling test and compatibility inspection before delivery to match the Mark V control rack perfectly.

Specifications:

Brand: GE

Model: DS200DCFBG1BNC

Product Type: DC Power Feedback Board

Series: Mark V Speedtronic

Sampling Signal: DC voltage and DC current signal

Circuit Protection: High voltage isolation, over power alarm

Mounting: Standoff mounting inside control cabinet

PCB Feature: Conformal coated multi-layer PCB

Operating Temperature: -40℃ ~ +70℃

Environmental Feature: Anti-vibration, dust and moisture resistant

Weight: Approx 0.72kg
