Product Details:

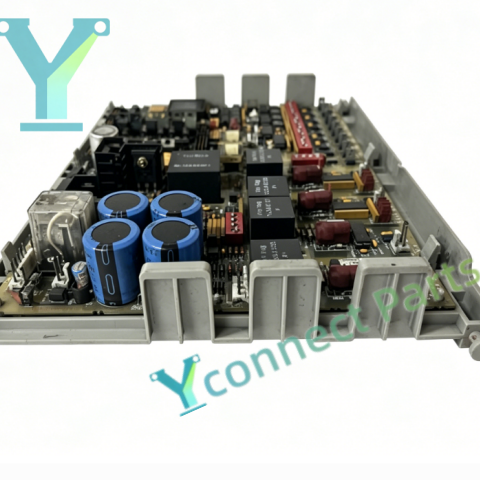

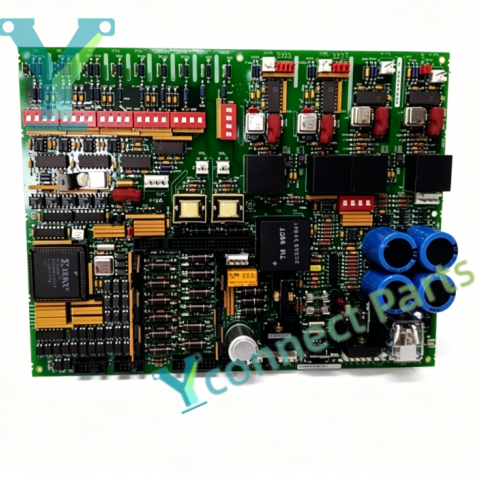

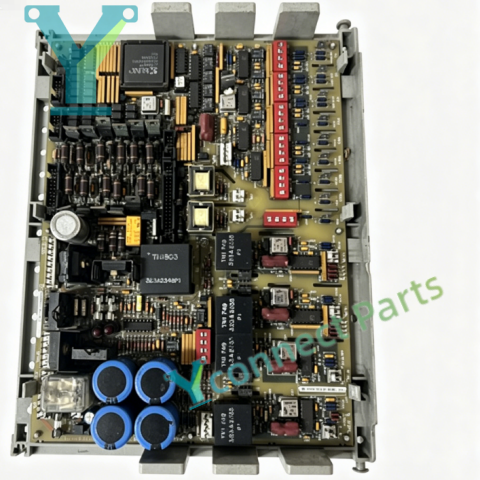

The GE DS200DCFBG1BLC dc power feedback board is an important power monitoring and signal feedback component designed for GE Mark V Speedtronic turbine control systems. This dc power feedback board collects real-time DC voltage and DC current signals from the power conversion unit, converts the sampled power parameters into available digital signals, and transmits the processed data back to the main turbine controller to realize closed-loop power adjustment and overload protection. As a stable mark v speedtronic board, it is equipped with precision sampling resistors and signal isolation circuits. These circuits can separate high-voltage power circuits and low-voltage control circuits effectively, reducing electromagnetic interference and protecting the main control rack from surge damage. The PCB of this board adopts conformal coated design, which can withstand dust, humidity and continuous mechanical vibration in the severe working environment of power plants. It continuously tracks DC power output, current and voltage values, and sends alarm signals once the working parameters exceed the preset safe threshold. As a key ge turbine control board, it is widely used in gas turbine and steam turbine generator sets, oil & gas compressor stations and petrochemical power control systems. When the original board has sampling deviation, signal interruption or electronic component aging, users can install this replacement spare part to recover accurate power feedback function, prevent overload damage to power modules and ensure safe and stable operation of the whole turbine system. Each board undergoes complete signal sampling test and compatibility inspection before delivery to match the Mark V control rack perfectly.

Specifications:

Brand: GE

Model: DS200DCFBG1BLC

Product Type: DC Power Feedback Board

Series: Mark V Speedtronic

Sampling Signal: DC voltage and DC current signal

Circuit Protection: High voltage isolation, over power alarm

Mounting: Standoff mounting inside control cabinet

PCB Feature: Conformal coated multi-layer PCB

Operating Temperature: -40℃ ~ +70℃

Environmental Feature: Anti-vibration, dust and moisture resistant

Weight: Approx 0.71kg
