Product Details:

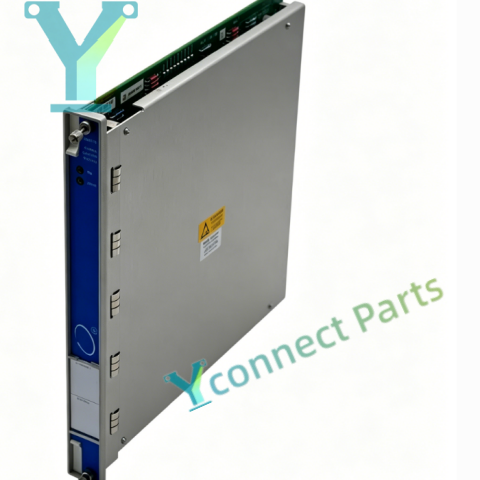

The BENTLY NEVADA 3500/92 communication gateway module is a full-height rack communication module designed for the Bently Nevada 3500 machinery protection system. This Modbus Interface collects all measurement data, alarm status and module health information from every monitoring module inside the 3500 rack via the internal rack backplane. The rack communication module converts internal rack data into standard Modbus TCP and Modbus RTU protocol, enabling seamless data exchange between the 3500 protection rack and external automation systems such as DCS, PLC and SCADA. It is equipped with dual 10/100Mbps RJ45 Ethernet ports and isolated RS232/RS422/RS485 serial ports, supporting simultaneous multi-point data transmission. Users can configure Modbus register mapping flexibly to customize uploaded data points. The module supports hot swapping during rack operation without interrupting machinery protection functions. Front panel LED indicators display module operating status and communication activity. Built-in continuous self-diagnosis function can detect communication failures and module faults, and report abnormal status in real time. It is widely deployed in petrochemical, power generation and metallurgy industries, applied to steam turbines, compressors, generators and pumps, realizing remote real-time viewing of vibration, shaft position and temperature data of rotating machinery.

Brand: Bently Nevada

Model:3500/92

Product Type: Communication Gateway Module

Module Size: Full-height rack module

Communication Ports: Dual RJ45 Ethernet, RS232/RS422/RS485 serial

Supported Protocol: Modbus TCP, Modbus RTU, Bently proprietary protocol

Power Consumption:5.0W ~5.6W typical

Operating Temperature:-30℃ ~ +65℃

Feature: Hot swappable,configurable Modbus register,self-diagnosis,status LED

Application: Bently Nevada 3500 machinery protection rack data communication
