Product Details:

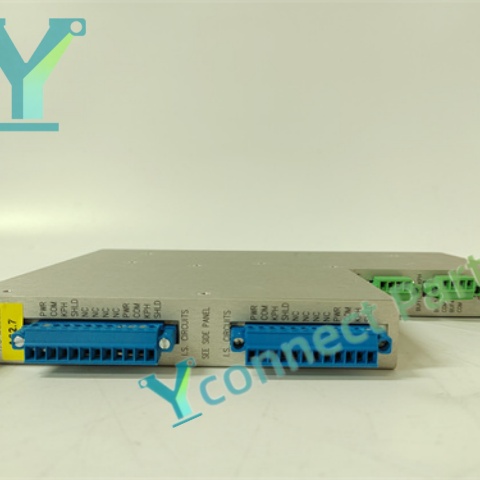

The BENTLY NEVADA 135473-01 Keyphasor I/O module with internal barrier and internal terminations is the rear signal conditioning board for the Bently Nevada 3500/25 enhanced Keyphasor module in the 3500 machinery protection rack system. This phase reference board receives pulse signals from proximity probes or magnetic pickups mounted on rotating shafts, and converts raw sensor pulses into stable once-per-turn timing reference signals for the 3500/25 main board to calculate rotational speed, vibration phase angle and orbit data. The 3500/25 I/O Board integrates built-in intrinsic safety barrier circuit, which limits energy output to field sensors and can be applied in hazardous explosion-prone areas without separate external safety barriers. It has two independent signal input channels, supporting separate configuration for one or two rotating shafts. The precise Keyphasor timing signal enables other monitor modules inside the rack to calculate 1X amplitude, phase and dynamic orbit plots for rotating machinery fault diagnosis. The module supports hot swapping during rack operation without interrupting the machinery protection safety loop. Built-in continuous self-diagnosis function monitors sensor open circuit, short circuit and board hardware faults automatically, and reports fault status via module LED indicators. It maintains stable signal transmission under strong power electromagnetic interference in industrial control cabinet environments. It is widely used in petrochemical, offshore oil, power generation and metallurgy industries, matched with steam turbines, gas turbines and centrifugal compressors, providing reliable phase reference data for rotating machinery TSI condition monitoring and safety protection.

Brand: Bently Nevada

Model:135473-01

Product Type: Dual Channel Keyphasor I/O Module with Internal Barrier and Internal Terminations

Compatibility:Bently Nevada 3500/25 Enhanced Keyphasor Module

Channels:2 independent signal input channels

Input:Proximity probe, magnetic pickup

Function:Convert sensor pulse to once-per-turn phase timing reference signal

Feature:Built-in intrinsic safety barrier,internal termination,hot swappable,self-diagnosis,dual channel configuration

Application:Bently Nevada 3500 machinery protection rack system hazardous area shaft phase and speed signal acquisition
