Product Details:

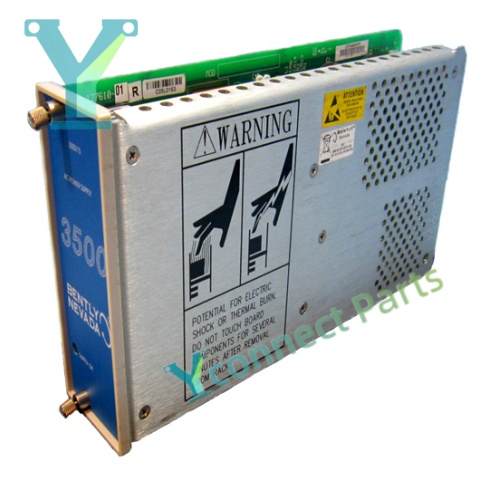

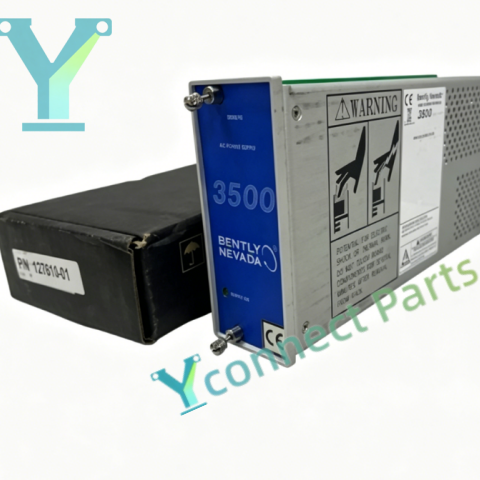

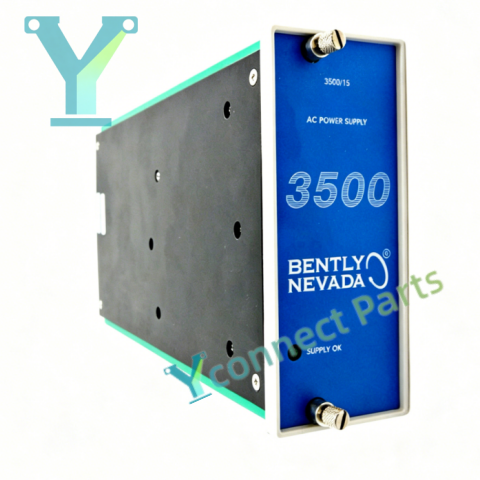

The BENTLY NEVADA 3500/15 127610-01 AC power supply module is a half-height rack power unit for the Bently Nevada 3500 machinery protection TSI system. This rack redundant power module accepts 90~264VAC universal alternating current input, converting AC power into stable regulated 24VDC bus voltage for all monitor, relay and communication modules inside the 3500 rack. It can be configured with dual redundant power setup. When two power modules are installed in the rack simultaneously, either module can independently supply full rack power, supporting hot swapping without interrupting the safety protection function of the whole machinery protection system. Built-in protection circuits include overvoltage, undervoltage, overcurrent and short-circuit protection, protecting all rack modules from power grid surges and power abnormality damage. Front panel LED indicator shows Supply OK status and fault alarm information. This model is the older legacy AC power supply unit, and has been replaced by updated 106M1079-01 power module. It must be mounted in the dedicated half-height power slot on the left side of the 3500 rack. Built-in continuous self-diagnosis function monitors internal hardware faults and power abnormal conditions. It is widely deployed in petrochemical, power generation and metallurgy industries, matched with steam turbines, gas turbines and centrifugal compressors, providing stable power support for rotating machinery vibration, temperature and overspeed TSI monitoring and safety protection.

Brand: Bently Nevada

Model:3500/15 127610-01

Product Type: Half-height Universal AC Power Supply Module

Input Voltage:90~264VAC,47~63Hz

Output:24VDC,5.5A

Mounting:Left dedicated power slot of 3500 rack

Feature:Universal AC input,dual redundant backup,hot swappable,multiple protection circuits,front status LED,legacy model

Application:Bently Nevada 3500 machinery protection rack redundant power supply system
