Product Details:

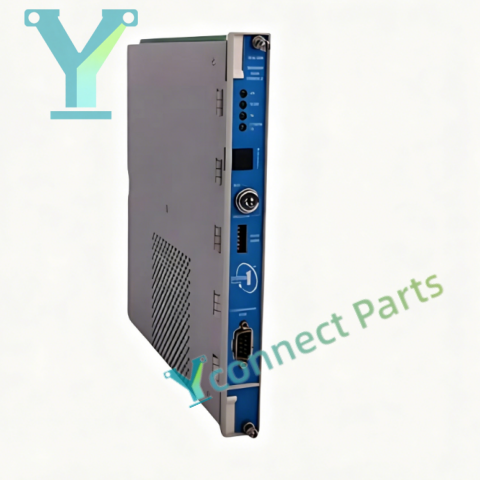

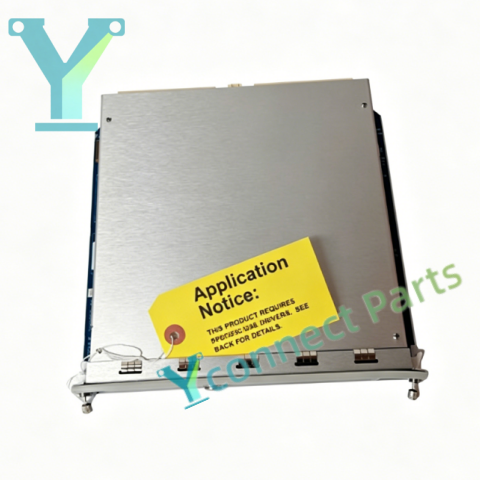

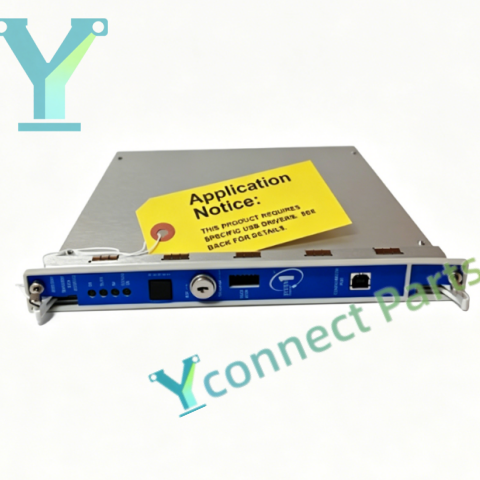

The BENTLY NEVADA 3500/22M transient data interface module, also known as TDI module, serves as the core rack interface for the Bently Nevada 3500 machinery protection system. This rack interface integrates rack communication and high-speed transient data collection functions, acting as the bridge between all monitoring modules inside the 3500 rack and external monitoring software such as System 1. The TDI module supports multiple communication interfaces including 10/100Base-T Ethernet, fiber optic Ethernet and RS232 serial port, realizing stable transmission of vibration waveform, shaft position and machine speed data. It can capture high-resolution dynamic transient data during machine startup, shutdown and alarm events, helping maintenance engineers analyze intermittent mechanical faults. The module occupies slot 1 next to the power supply inside the 3500 rack, equipped with status indicator LEDs and fault alarm relay output. It will not interfere with the safety protection loop of the machinery protection system, ensuring the protection function works normally even during data communication. It is widely deployed on steam turbines, centrifugal compressors, pumps and fans in petrochemical, power and metallurgy industries for rotating machinery condition monitoring and fault diagnosis.

Brand: Bently Nevada

Model:3500/22M

Product Type: Transient Data Interface Module

Alias: TDI Module

Communication: 10/100Base-T Ethernet,100Base-FX Fiber,RS232

Installation: Slot 1 of 3500 rack, beside power supply

Power Consumption: 10.5W

Feature: High speed transient data capture,status LED indicators,fault relay output

Application: Bently Nevada 3500 machinery protection rack system
