Product Details:

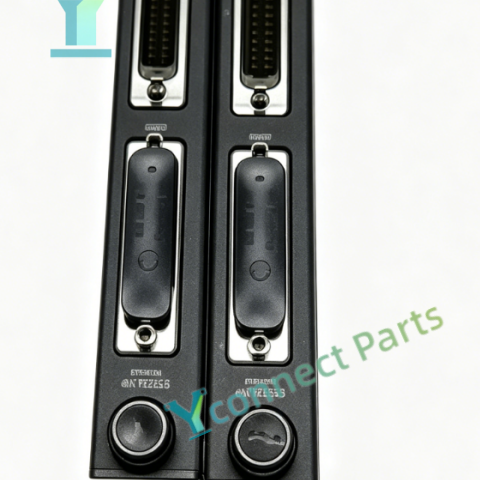

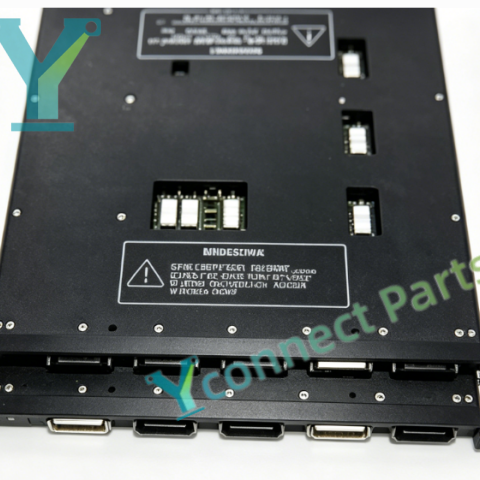

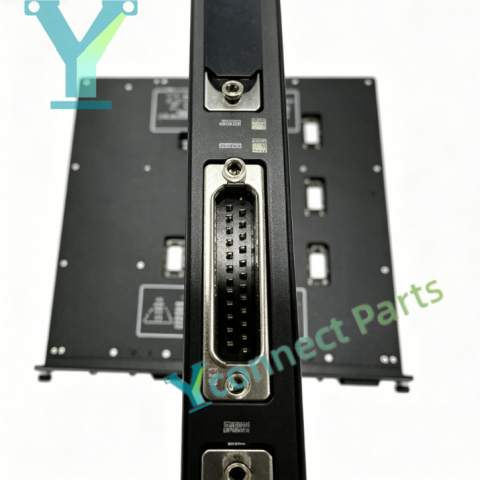

TRICONEX 4107 also known as EICM4107 is an enhanced intelligent communication module built with triple modular redundancy (TMR) architecture for Triconex Tricon safety instrumented systems (SIS). This TMR safety module provides multi-channel serial communication interfaces to connect the Tricon safety controller with external Modbus RTU devices, HMI and TriStation engineering workstation. The Tricon enhanced intelligent communication module is equipped with 4 serial ports supporting RS232, RS422 and RS485 signal standards. RS485 interface can connect up to 32 slave devices on a single bus, with maximum transmission distance up to 1200 meters. It supports Modbus RTU and Modbus ASCII protocols, realizing bidirectional data exchange of safety variables, alarm status and diagnostic information. Each communication channel adopts galvanic isolation design to suppress electromagnetic interference and ground loop noise. It continuously monitors communication link status, data transmission integrity and internal hardware health, and triggers fault alarms once communication interruption or hardware failure occurs. The module supports hot swap operation, maintenance personnel can replace the faulty communication module online without shutting down the whole safety system. Front panel LED indicators display power, link activity and fault status for fast on-site inspection and troubleshooting. It can be installed in the dedicated communication slot of standard Tricon rack and cooperates with Tricon processor and I/O modules. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 4107 communication module serves for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX (Schneider Electric)

Model: 4107 (EICM4107)

Product Type: Tricon Enhanced Intelligent Communication Module

System Compatibility: Tricon TMR Safety Instrumented System

Serial Ports: 4 configurable serial ports

Interface Type: RS232, RS422, RS485

Supported Protocol: Modbus RTU, Modbus ASCII

Max RS485 Slaves: 32 units

Max Transmission Distance: 1200m

Architecture: Triple Modular Redundancy(TMR), 2-out-of-3 voting

Safety Level: SIL3 certified

Isolation: Port to backplane galvanic isolation

Diagnostics: Communication link and hardware real-time monitoring

Feature: Hot swappable, multi-protocol serial communication

Status Indicator: POWER, LINK, FAULT LED indicators

Mounting: Tricon rack dedicated communication slot plug-in

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: IEC61508, SIL3, CE
