Product Details:

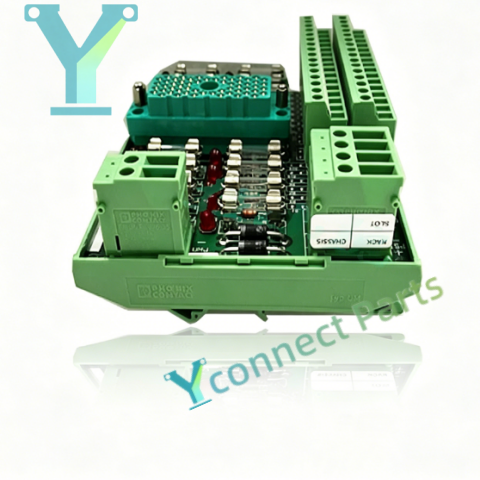

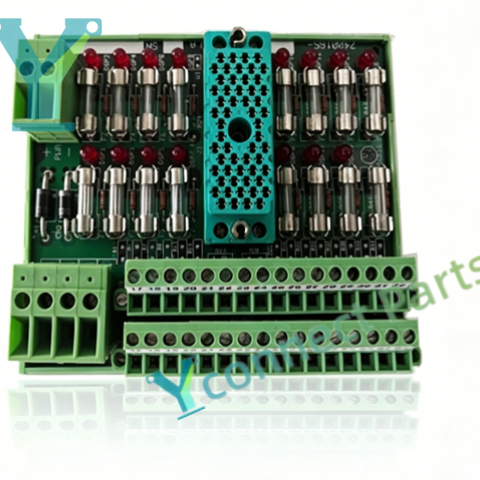

TRICONEX 9753-1-1 is a digital input termination panel built for Triconex Tricon triple modular redundancy (TMR) safety instrumented systems (SIS). This TMR safety terminal board serves as the wiring interface between Tricon digital input modules and field safety instruments, including emergency stop buttons, pressure switches, limit switches and other discrete field sensors. The Tricon digital input termination panel adopts a dedicated 50-pin connector to connect with the corresponding digital input module through a shielded cable. All field sensor wires are terminated on the screw terminal blocks of this panel, allowing maintenance personnel to replace I/O modules without disconnecting field wiring, effectively reducing wiring errors and system downtime. The panel integrates signal conditioning circuits and channel status indicator lights for quick on-site status checking and fault diagnosis. It adopts reinforced metal casing and shielding design to resist electromagnetic interference and ground loop noise in heavy industrial environments. It can perfectly cooperate with Tricon TMR digital input modules, supporting continuous channel circuit diagnosis of the safety system. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 9753-1-1 termination panel is used for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX (Schneider Electric)

Model: 9753-1-1

Product Type: Tricon Digital Input Termination Panel

System Compatibility: Tricon TMR Safety Instrumented System

Connector Type: 50-pin interface for Tricon digital input module

Field Connection: Screw terminal block for field discrete sensors

Application: Emergency stop buttons, pressure switches, limit switches

Architecture: Matches Tricon TMR, 2-out-of-3 voting system

Safety Level: SIL3 certified

Feature: Module replacement without removing field wiring, channel status LED indicators

Status Indicator: Channel status LED indicators

Mounting: Cabinet mounting

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: IEC61508, SIL3, CE
