Product Details:

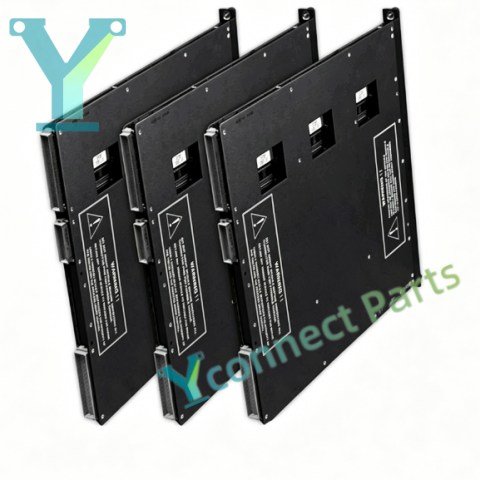

TRICONEX 0905-148-6921 is a digital input termination module built with triple modular redundancy (TMR) architecture for Triconex Tricon safety instrumented systems (SIS). This TMR safety terminal module serves as the signal interface between Tricon digital input modules and field safety instruments, collecting 24VDC discrete signals from emergency stop buttons, pressure switches, limit switches and other field safety sensors. The Tricon digital input termination module adopts optical isolation design to separate field circuits and system internal circuits, effectively blocking surge voltage and noise interference. It is equipped with single channel fuse protection to limit fault propagation and avoid affecting the whole safety system. The module supports signal conditioning and filtering, delivering stable and reliable field status signals to the Tricon main controller. Built-in circuit diagnostics can detect open circuit, short circuit and wiring faults, and upload fault alarm messages to the Tricon engineering workstation in real time. Technicians can replace the corresponding I/O module without disconnecting field wiring, which reduces maintenance time and wiring errors. Front panel LED indicators display channel working status for fast on-site inspection and troubleshooting. It can perfectly cooperate with Tricon TMR digital input modules. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 0905-148-6921 termination module supports signal acquisition for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX (Schneider Electric)

Model: 0905-148-6921

Product Type: Tricon Digital Input Termination Module

System Compatibility: Tricon TMR Safety Instrumented System

Field Signal: 24VDC discrete input

Isolation: Optical isolation between field and system side

Channel Protection: Individual channel fuse protection

Architecture: Matches Tricon TMR, 2-out-of-3 voting system

Safety Level: SIL3 certified

Diagnostics: Open circuit, short circuit and wiring fault real-time detection

Feature: Optical isolation, convenient maintenance without removing field cables

Status Indicator: Channel status LED indicators

Mounting: Cabinet mounting

Operating Temperature: -40℃ ~ +70℃

Humidity: 5% to 95% non-condensing

Certifications: IEC61508, SIL3, CE
