Product Details:

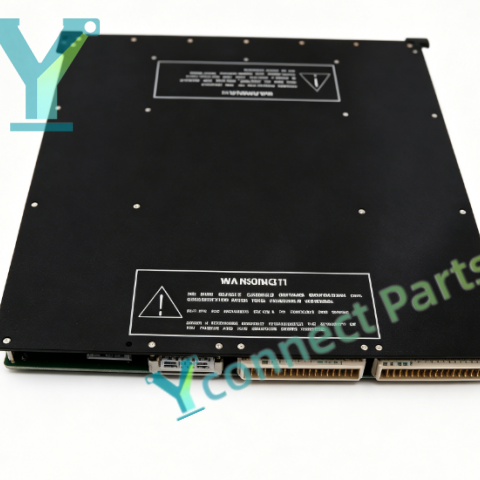

TRICONEX 0903-164-7921 is a TMR safety I/O module built with triple modular redundancy (TMR) architecture for Triconex Tricon safety instrumented systems (SIS). This TMR control module can collect discrete field safety signals and execute safety control output commands, working as a core interface between the Tricon main processor and field safety instruments. The Tricon safety I/O module supports signal acquisition from emergency stop buttons, pressure switches and limit switches, and outputs control signals to drive solenoid valves and actuators. It adopts triple redundant signal processing circuits and 2-out-of-3 voting logic to eliminate single point of failure and guarantee reliable signal transmission. The module has robust anti-interference circuit design to suppress ground loop noise and electromagnetic interference generated by long field wiring in heavy industrial sites. Continuous built-in channel diagnostics can detect open circuit, short circuit and internal hardware faults, and upload fault alarm messages to the Tricon engineering workstation in real time. The module supports hot swap operation, maintenance personnel can replace the faulty module online without shutting down the whole safety system. Front panel LED indicators display module PASS, FAULT and each channel status for fast on-site inspection and troubleshooting. It can be installed in standard Tricon rack and cooperates with Tricon processor and other I/O modules. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 0903-164-7921 safety I/O module undertakes signal acquisition and safety control tasks for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX (Schneider Electric)

Model: 0903-164-7921

Product Type: Tricon Safety I/O Module

System Compatibility: Tricon TMR Safety Instrumented System

Architecture: Triple Modular Redundancy(TMR), 2-out-of-3 voting

Safety Level: SIL3 certified

Diagnostics: Open circuit, short circuit and hardware fault real-time detection

Feature: Hot swappable, integrated input and output signal processing

Status Indicator: PASS, FAULT, channel status LED indicators

Mounting: Tricon rack plug-in

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: IEC61508, SIL3, CE
