Product Details:

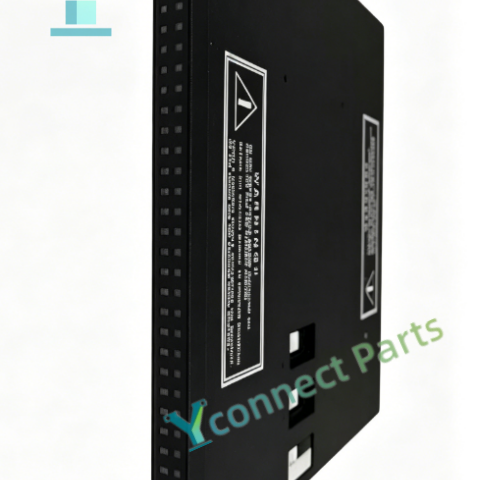

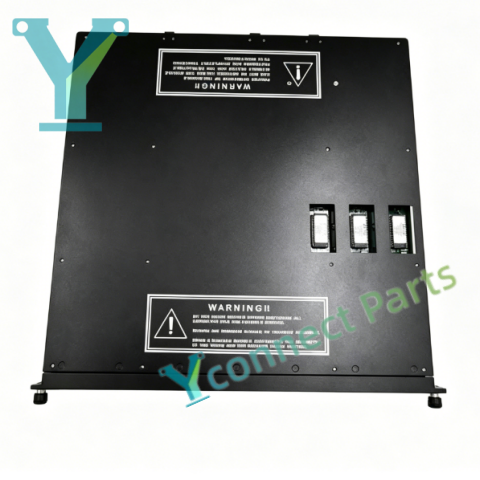

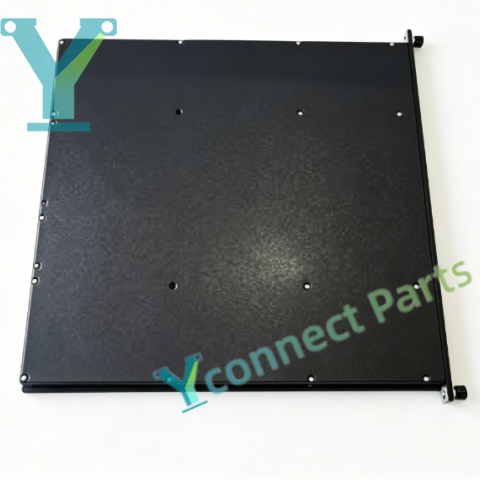

TRICONEX 0923-141-6957 is a safety interface module built with triple modular redundancy (TMR) architecture for Triconex Tricon safety instrumented systems (SIS). This TMR safety control module establishes reliable signal transmission between the Tricon main controller and field instruments, realizing bidirectional signal conversion and isolation for safety control circuits. The Tricon safety interface module adopts reinforced metal housing and shielding circuit design to suppress electromagnetic interference and ground loop noise in harsh industrial environments. It supports 24VDC operating voltage, with built-in signal conditioning and channel fault diagnosis functions. The module uses 2-out-of-3 voting logic for signal processing to eliminate single point of failure and guarantee safety signal integrity. It can continuously detect circuit open circuit, short circuit and internal hardware abnormalities, and upload fault alarm messages to the Tricon engineering workstation in real time. The module supports hot swap operation, maintenance personnel can replace the faulty module online without shutting down the whole safety system. Front panel LED indicators display module PASS, FAULT and channel working status for fast on-site inspection and troubleshooting. It can be installed in standard Tricon rack and cooperates with Tricon processor and other I/O modules. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 0923-141-6957 safety interface module undertakes signal isolation and transmission tasks for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX (Schneider Electric)

Model: 0923-141-6957

Product Type: Tricon Safety Interface Module

System Compatibility: Tricon TMR Safety Instrumented System

Operating Voltage: 24VDC

Architecture: Triple Modular Redundancy(TMR), 2-out-of-3 voting

Safety Level: SIL3 certified

Diagnostics: Open circuit, short circuit and hardware fault real-time detection

Feature: Hot swappable, signal isolation and conditioning

Status Indicator: PASS, FAULT, channel status LED indicators

Mounting: Tricon rack plug-in

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: IEC61508, SIL3, CE
