Product Details:

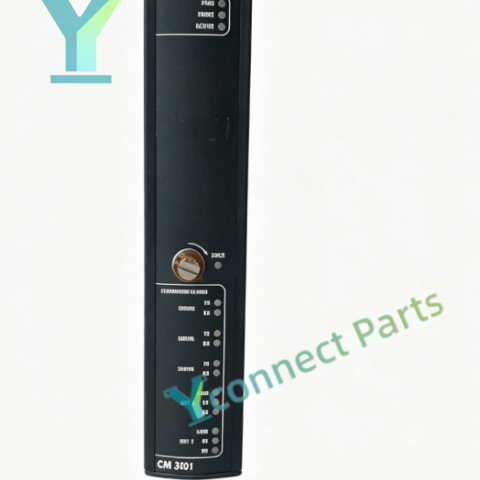

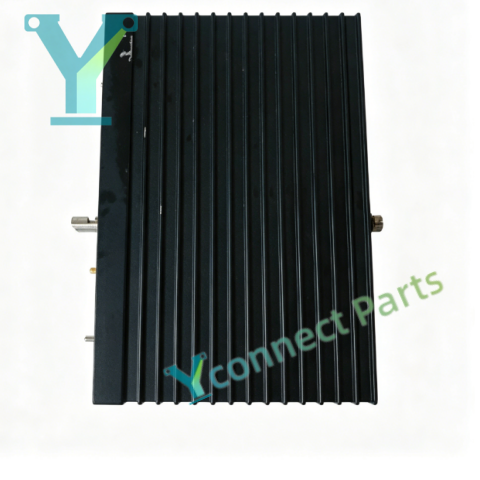

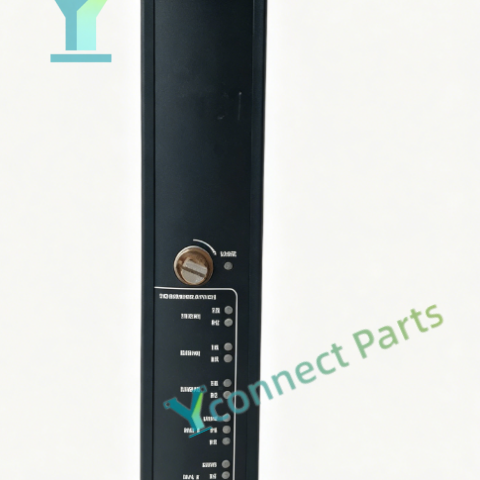

TRICONEX 3201 also known as CM3201 is the communication module for Triconex Trident safety instrumented systems (SIS). This SIS safety system module provides multiple communication interfaces to realize data exchange between Trident main controller and external systems such as DCS, SCADA, HMI and engineering workstation. The Trident communication module supports Modbus TCP, Modbus RTU, TriStation protocol and peer-to-peer communication between different Trident racks. It is equipped with 2 Ethernet ports and 3 configurable RS232/RS485 serial ports, users can flexibly select communication ports and protocols according to site project demands. The module continuously monitors communication link status and internal hardware health, and reports fault alarms to the engineering workstation in real time. It supports hot swap operation, maintenance personnel can replace the faulty module online without shutting down the whole safety system. Front panel LED indicators display module health status, Ethernet and serial communication activity for fast on-site troubleshooting. It can be installed on the dedicated CM baseplate of standard Trident rack and cooperates with Trident main processor and I/O modules. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 3201 communication module provides reliable data transmission for ESD emergency shutdown and fire and gas safety control systems.

Specifications:

Manufacturer: TRICONEX (Schneider Electric)

Model: 3201 (CM3201)

Product Type: Trident Communication Module

System Compatibility: Trident Safety Instrumented System

Communication Ports: 2 Ethernet ports, 3 configurable RS232/RS485 serial ports

Supported Protocol: Modbus TCP, Modbus RTU, TriStation, Trident peer-to-peer

Power Supply: 24VDC, 19.2~30VDC operating range

Diagnostics: Communication link and internal hardware fault detection

Feature: Hot swappable

Status Indicator: LED indicators for module health, Ethernet and serial port status

Mounting: Trident CM baseplate plug-in

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: IEC61508, SIL3, CE
