Product Details:

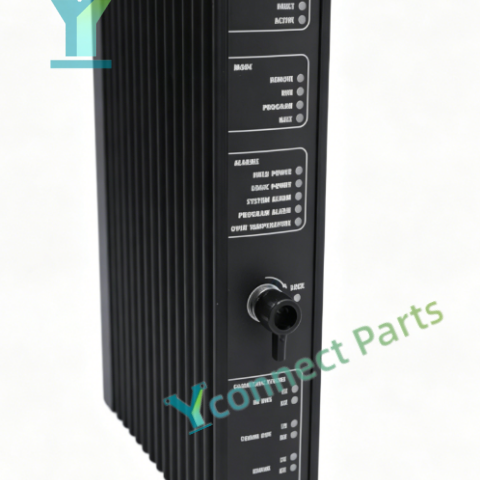

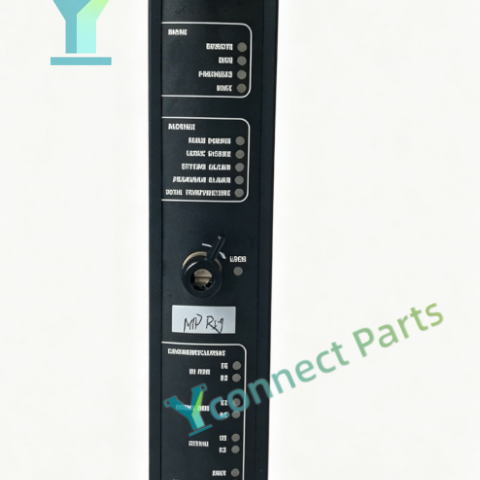

TRICONEX 3101 also known as MP3101 is the main processor module adopting triple modular redundancy (TMR) architecture for Triconex Trident safety instrumented systems (SIS). This TMR safety controller module is the core computing unit of the Trident system, responsible for executing safety control logic, collecting field I/O signals and performing 2-out-of-3 voting logic to eliminate single point of failure. The Trident main processor module uses Motorola MPC860 32-bit 50MHz dual processors, SX processor for safety logic operation and IOX processor for I/O bus management. It is equipped with 6MB CRC-protected Flash PROM, 16MB DRAM and 8KB NVRAM for program storage, SOE sequence of events recording and retention of variable data. It supports multiple communication interfaces to connect engineering workstations, HMI and DCS systems, and continuously runs comprehensive hardware diagnostics on memory, bus, power supply and I/O modules. The module supports hot swap operation, maintenance personnel can replace the faulty unit online without shutting down the whole safety system. Front panel LED indicators including PASS, FAULT, ACTIVE, MODE, PROGRAM, ALARM help technicians quickly check module running state and locate faults. It meets SIL3 safety integrity level requirements and is installed in dedicated processor slot of standard Trident rack, working with Trident I/O modules. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 3101 processor module performs safety interlock, ESD emergency shutdown and burner management control.

Specifications:

Manufacturer: TRICONEX (Schneider Electric)

Model: 3101 (MP3101)

Product Type: Trident Main Processor Module

System Compatibility: Trident TMR Safety Instrumented System

CPU: Dual Motorola MPC860, 32-bit, 50MHz

Memory: 6MB Flash PROM,16MB DRAM,8KB NVRAM

Architecture: Triple Modular Redundancy(TMR), 2-out-of-3 voting

Safety Level: SIL3 certified

Power Supply: 24VDC logic power, 19.2~30VDC operating range, max 8W

Diagnostics: Memory, bus, power supply and I/O hardware fault detection

Feature: Hot swappable, SOE event recording supported

Status Indicator: PASS, FAULT, ACTIVE, MODE, PROGRAM, ALARM LED indicators

Mounting: Trident rack dedicated processor plug-in slot

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: IEC61508, SIL3, CE
