Product Details:

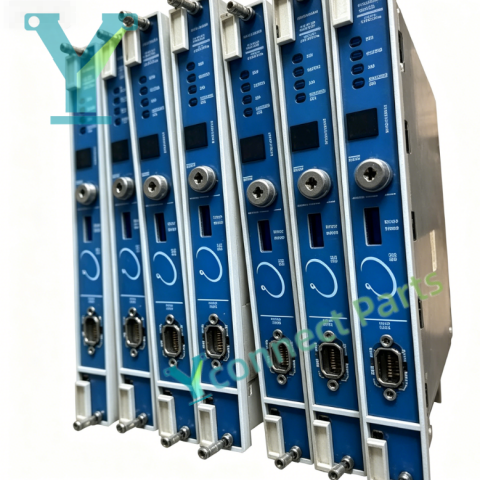

The BENTLY NEVADA 3500/93-01-00-00-00 display interface module(DIM) belongs to Bently Nevada 3500 TSI machinery protection system. The suffix -01 represents standard RS422 communication interface, -00-00-00 are default configuration options without special certifications. This full-height hot-swappable module occupies one slot in the 3500 rack. It acts as a data bridge between rack backplane and local display unit. It collects vibration, displacement, temperature, speed, alarm status and event logs from all modules in the rack, and transmits data to up to two 3500 local LCD display panels through RS422 serial bus. Users can set display groups and alarm view parameters via 3500 rack configuration software. Front panel LED indicators display module OK status and communication link status for on-site inspection. Built-in self-diagnosis function can detect module hardware fault and communication interruption faults. It supports hot swapping during normal rack operation, maintenance staff can replace the module without shutting down the whole TSI system. It complies with API 670 turbomachinery monitoring standard, widely applied in petrochemical, power generation and metallurgy industries, matched with steam turbines, gas turbines and centrifugal compressors, used for local data display and alarm checking of rotating machinery protection rack.

Brand:Bently Nevada

Model:3500/93-01-00-00-00

Product Type:Full-height Display Interface Module(DIM)

Installation:Any free slot of 3500 system rack

Communication:RS422 serial for local display panel

Feature:support up to 2 display panels,hot swappable,self-diagnosis,API 670 compliant,standard non-certified version

Application:Bently Nevada 3500 machinery protection rack local display data transmission
