Product Details:

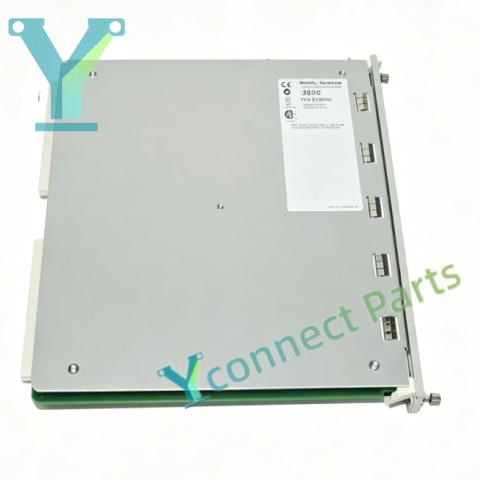

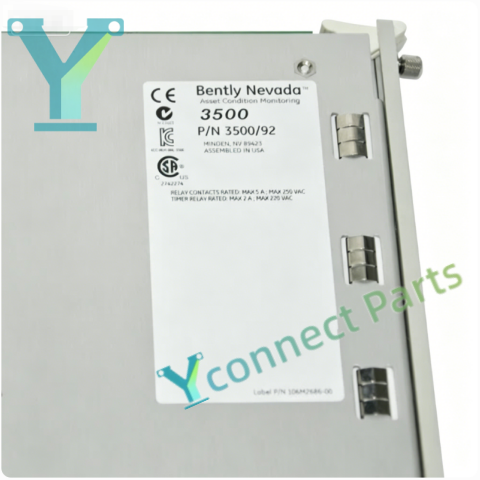

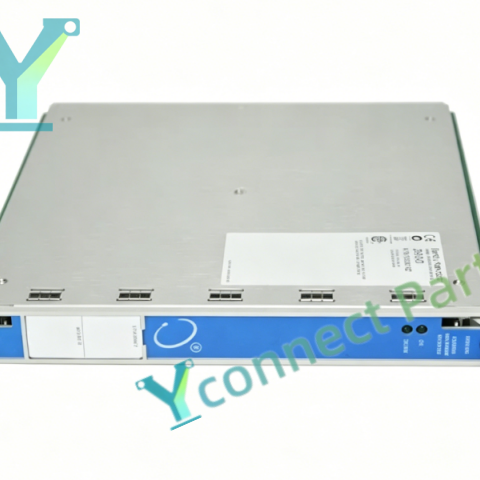

The BENTLY NEVADA 3500/92 136180-02 communication gateway module belongs to Bently Nevada 3500 TSI machinery protection system. It is a full-height hot-swappable card, occupying one slot inside the 3500 rack. This module collects all monitoring data, alarm status and module health information from the backplane of the rack, and converts internal rack data into standard Modbus TCP/IP and Modbus RTU protocols for external systems. It supports 10/100Base-T Ethernet RJ45 port and RS232/RS422/RS485 serial port, connecting to DCS, PLC, SCADA and plant historian systems. It has configurable Modbus register mapping function, users can freely select and assign the required monitoring parameters. It also supports communication with 3500 rack configuration software and data acquisition software. Front panel LED indicators display module OK status and communication link status for on-site inspection. Built-in self-diagnosis function can detect module hardware fault and communication interruption faults. It supports hot swapping during normal rack operation, maintenance staff can replace the module without shutting down the whole TSI system. It complies with API 670 turbomachinery monitoring standard, widely applied in petrochemical, power generation and metallurgy industries, matched with steam turbines, gas turbines and centrifugal compressors, used for data exchange between 3500 machinery protection rack and plant control system.

Brand:Bently Nevada

Model:3500/92 136180-01

Product Type:Full-height Communication Gateway Module

Installation:Any free slot of 3500 system rack

Communication:Modbus TCP/IP,Modbus RTU,Bently proprietary protocol

Feature:dual Ethernet optional,configurable Modbus register,hot swappable,self-diagnosis,API 670 compliant

Application:Bently Nevada 3500 machinery protection rack data communication with DCS/PLC
